Overview
| Place of Origin | Guangdong, China | Brand Name | Slocable |
| Model Number | SDSC | Type | DC Isolator Switch |
| Application | Power, Waterproof Case | Item | Waterproof Distribution Board DC Isolator |
| Max. Voltage | 1000V | Max. Current | 32A |
| Pole | 2P/4P/6P/8P | Rated Current | 32A |
| Certificate | TUV, CE, CB, SAA, CCC | Operation Temperature | -40℃~ +70℃ |
| Connection | IP66 Waterproof | Mounting | Din Rail Mounting |
Product Description

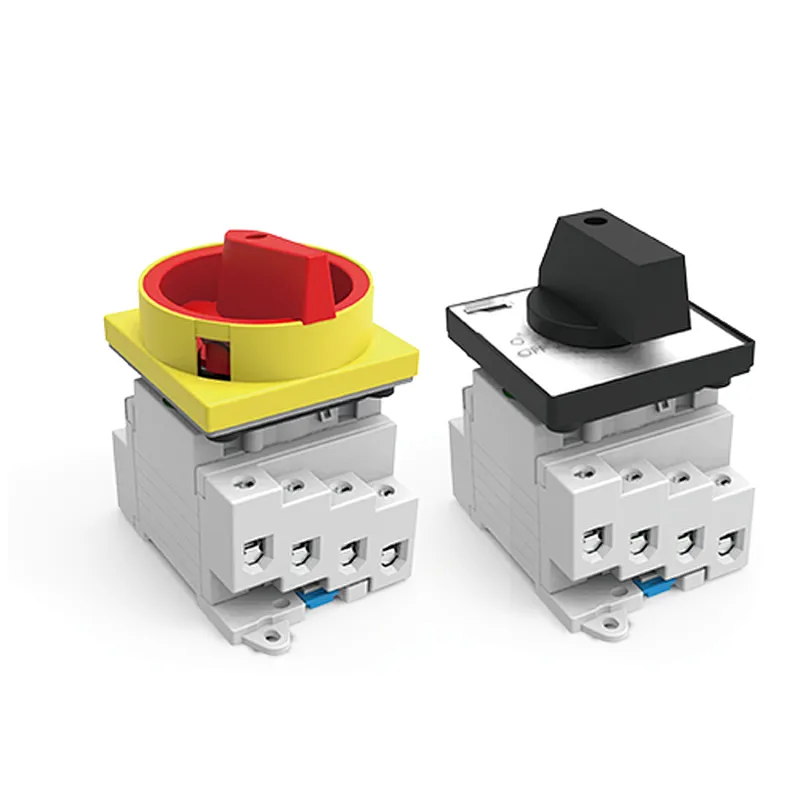

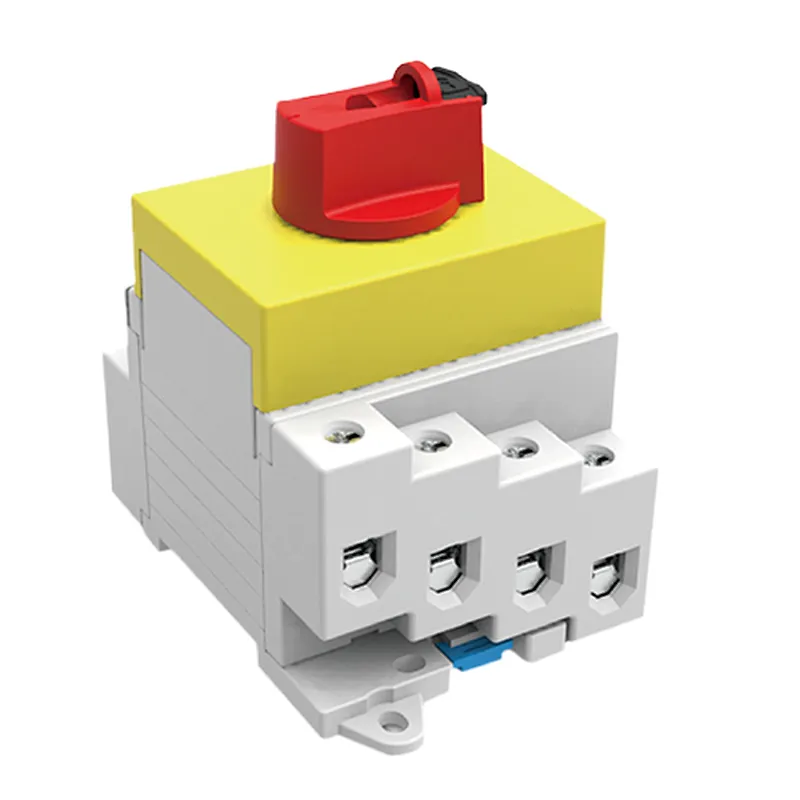

Advantages of Waterproof Distribution Board DC Isolator for Solar Energy:
- Non-polarity DC Isolator Switch.

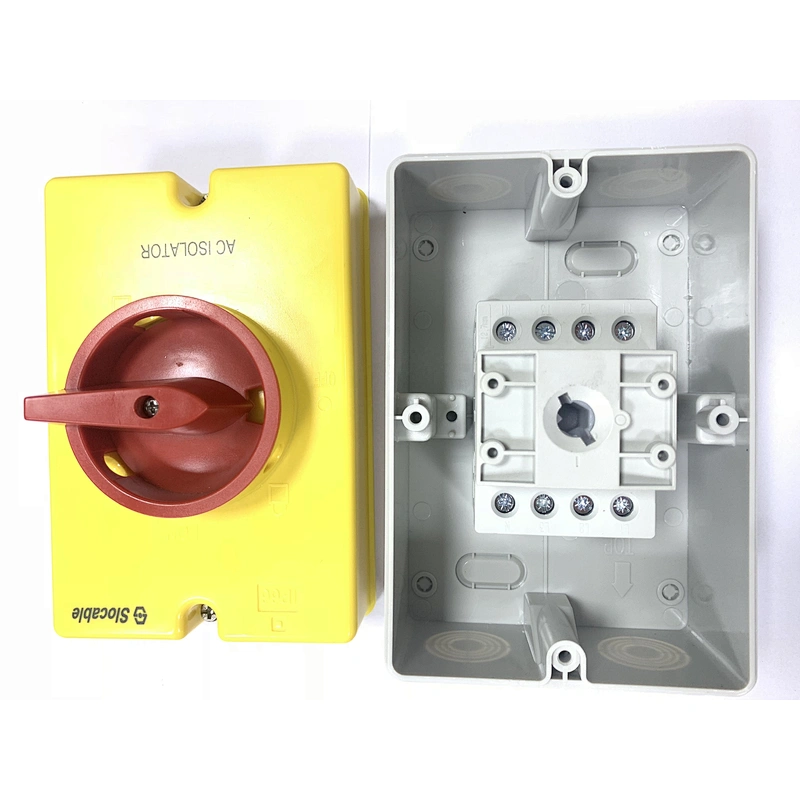

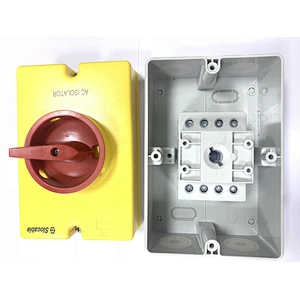

- Pannel Mounting, Distribution Board, Door Clutch Mounting or Plastic Enclosure optional.
- Compact structure and modular design, levels with different Poles from 2 to 8 are available.
- Parallel connections design, more big bore diameter makes connection fastness and flexibility.
- Fast switching structure, arcing time normally occurs less than 3ms.
- Self-cleaning contact mechanism, extending the lifespan of switch.
- Dynamic sealing design and world class sealing materials guarantee an IP66 protection rate.
- UL94V-0 standard flame resistant materials , the product can be full loading operation at temperatures -40 ℃ ~+70℃.
- DC 1500V insulation voltage design, with TUV, CE(IEC/EN60947-3:2009+A1+A2), SAA(AS60947.3), DC-PV1 and DC-PV2. certifications.
