Overview
| Place of Origin | Guangdong, China | Brand Name | Slocable |
| Model Number | SDS-HM-16/32 | Type | DC Isolator Switch |

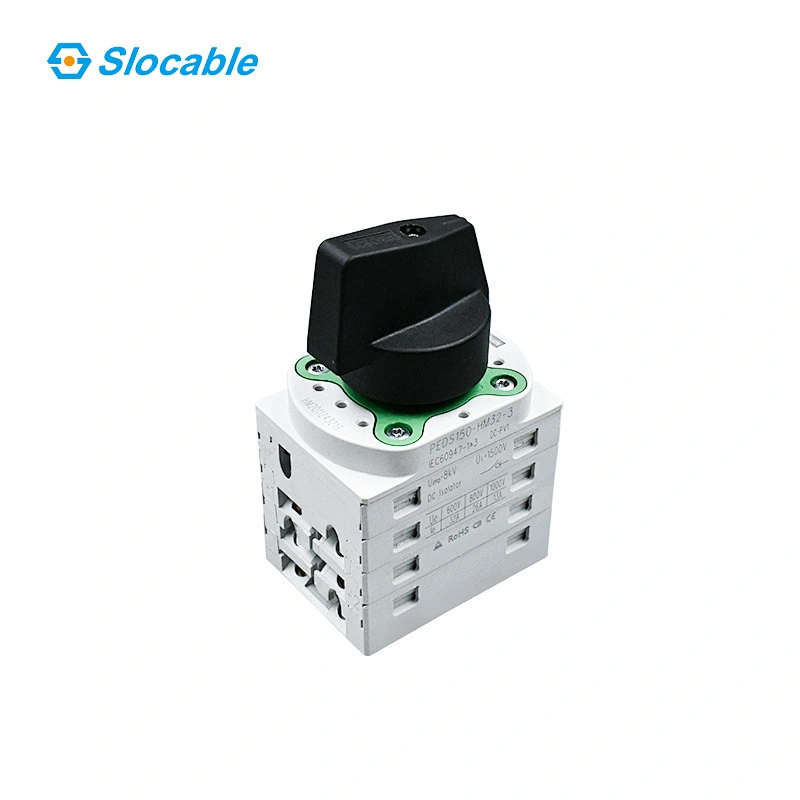

| Application | Solar PV System | Item | 1500V 16A 32A Single Hole Mounting DC Isolator Switch for Solar System |
| Max. Voltage | 1500V DC | Max. Current | 32A |
| Rated Current | 16-32A | Operation Temperature | -40℃~ +85℃ |
| Certificate | TUV, CE, CB, SAA, CCC | Protection Degree | IP66 Waterproof |
Product Description
Advantages of 1500V 16A 32A Single Hole Mounting DC Isolator Switch for Solar System:
- Non-polarity DC Isolator Switch
- Modular design, optional 2-8 levels.
- Positive contact or reverse contact optional.
- Single Hole Mounting, Panel Mounting, Distribution Board , Door Clutch or Enclosure optional.
- Dynamic sealing design and world class sealing materials guarantee an IP66 protection rate.
- DC 1500V insulation voltage design, passed IEC/EN60947-3:2009+A1+A2, AS60947.3, with TUV, CE, CB, SAA certifications.

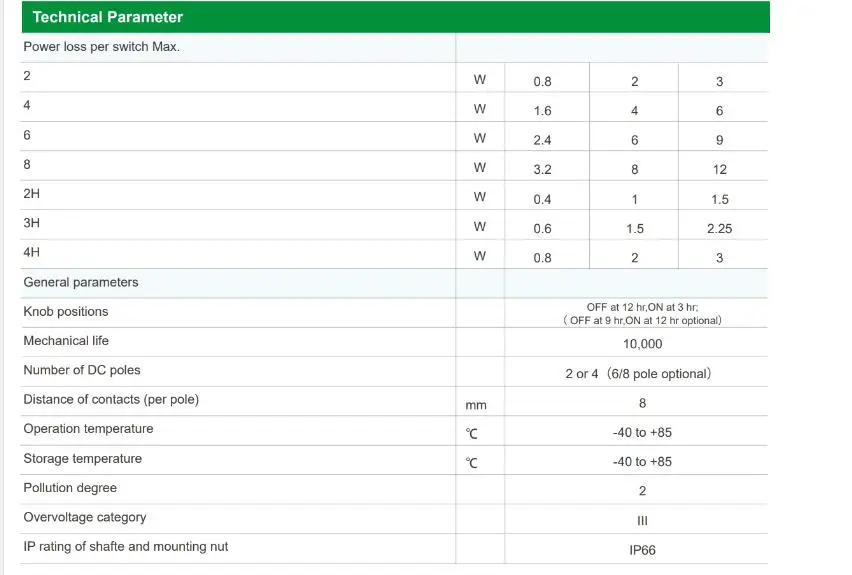

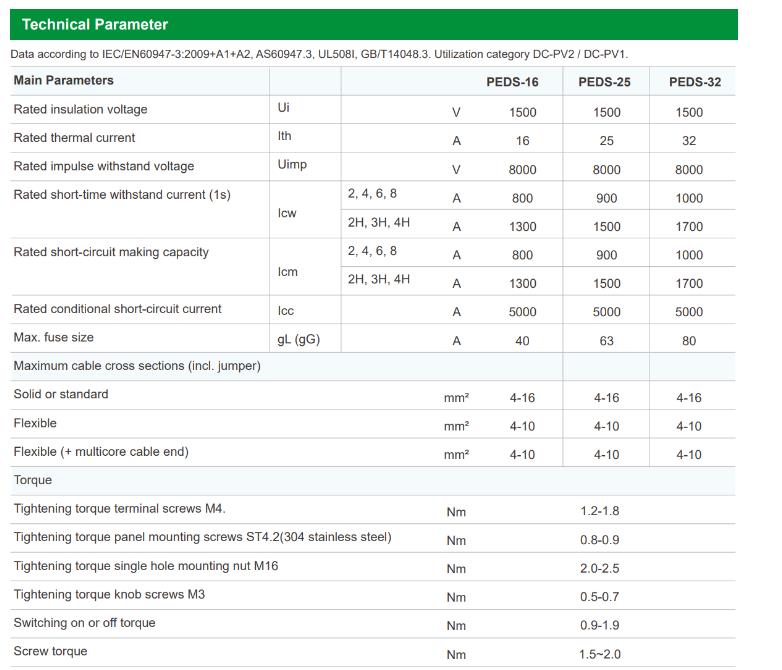

Technical Data
Send Message
Related Products

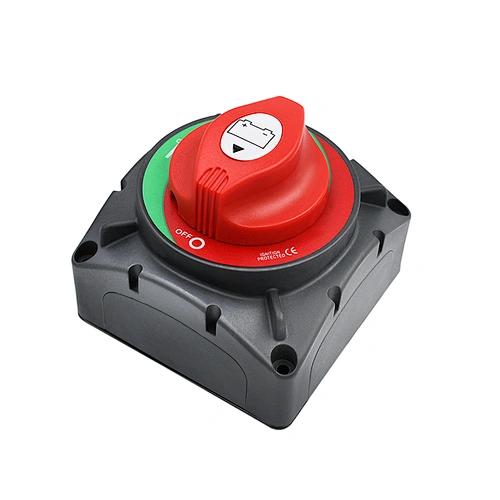

Model NO. SLO-BS

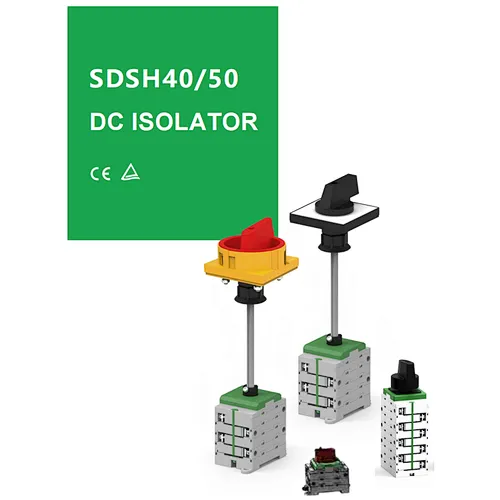

Model NO. SDSH40/50
Model NO. SDS-EL

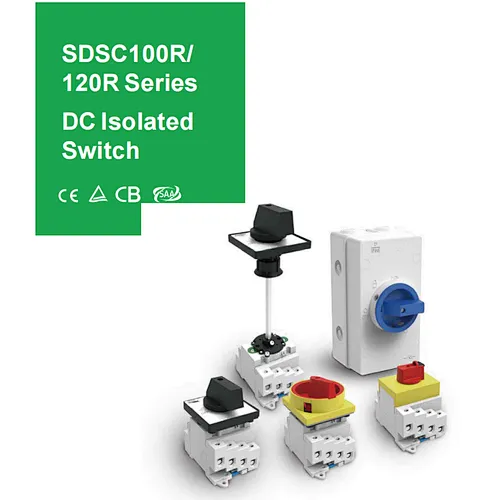

Model NO. SDSC

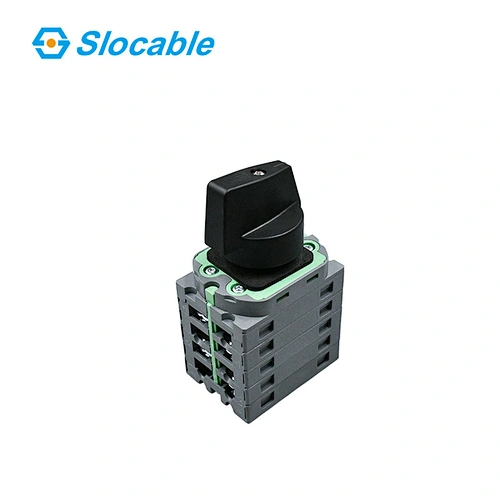

Model NO. SDS-HM-40/55
