Overview
| Place of Origin | Guangdong, China | Brand Name | Slocable |
| Model Number | SDS-HM-40/55 | Type | DC Isolator Switch |

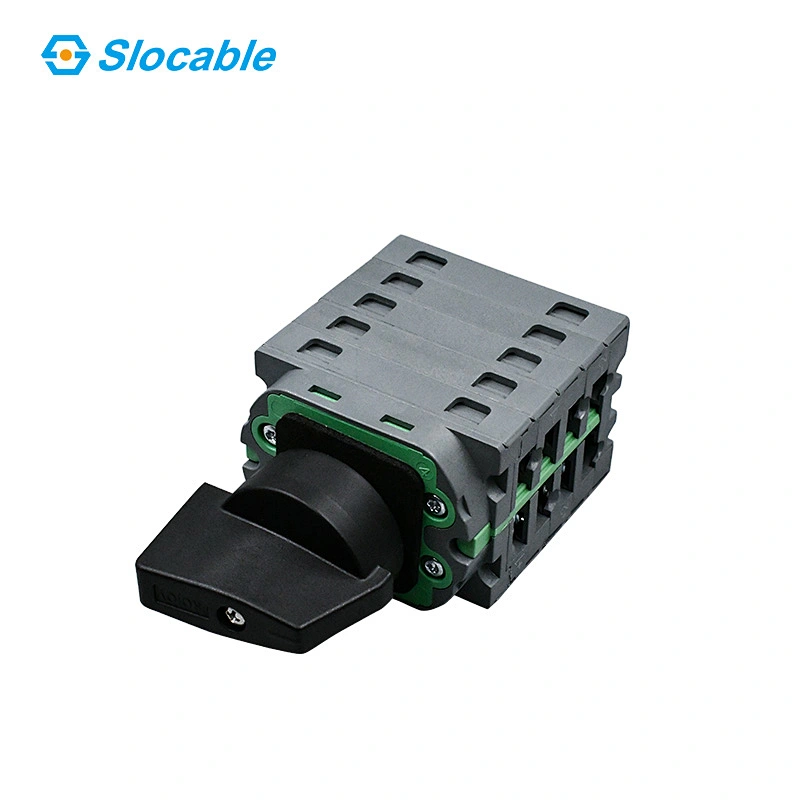

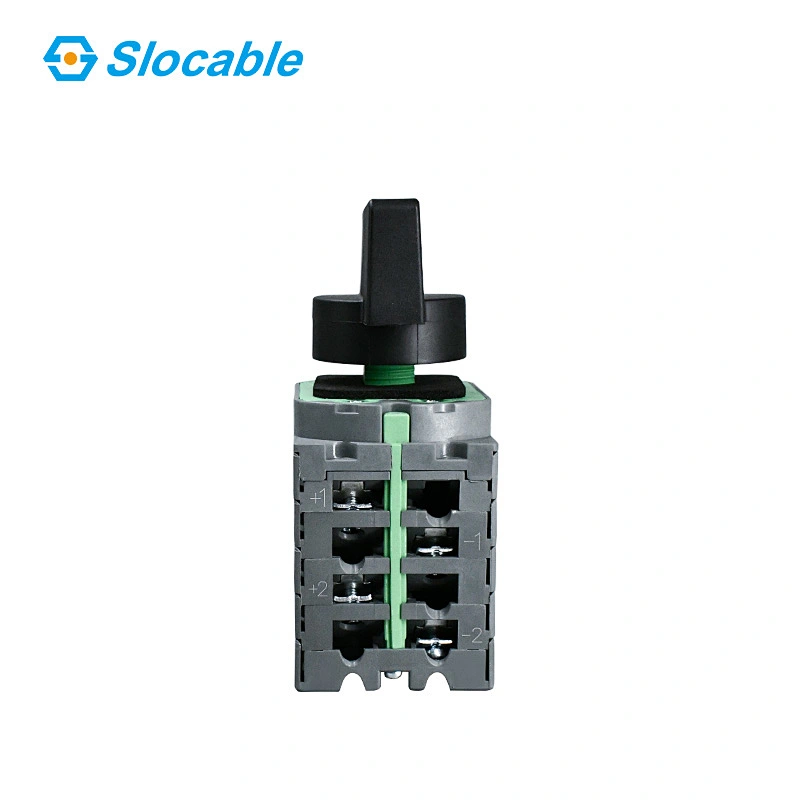

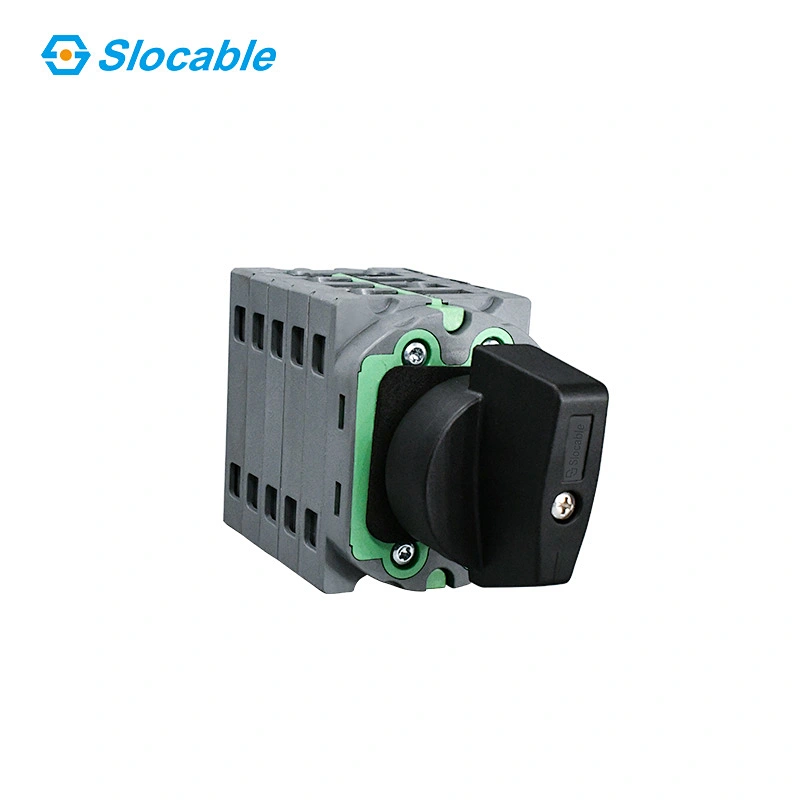

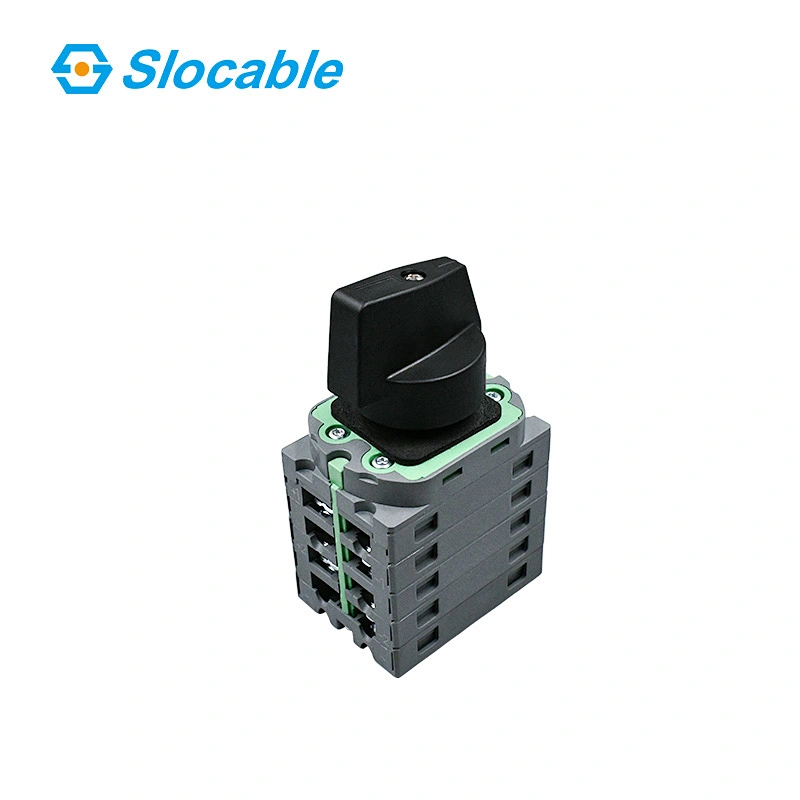

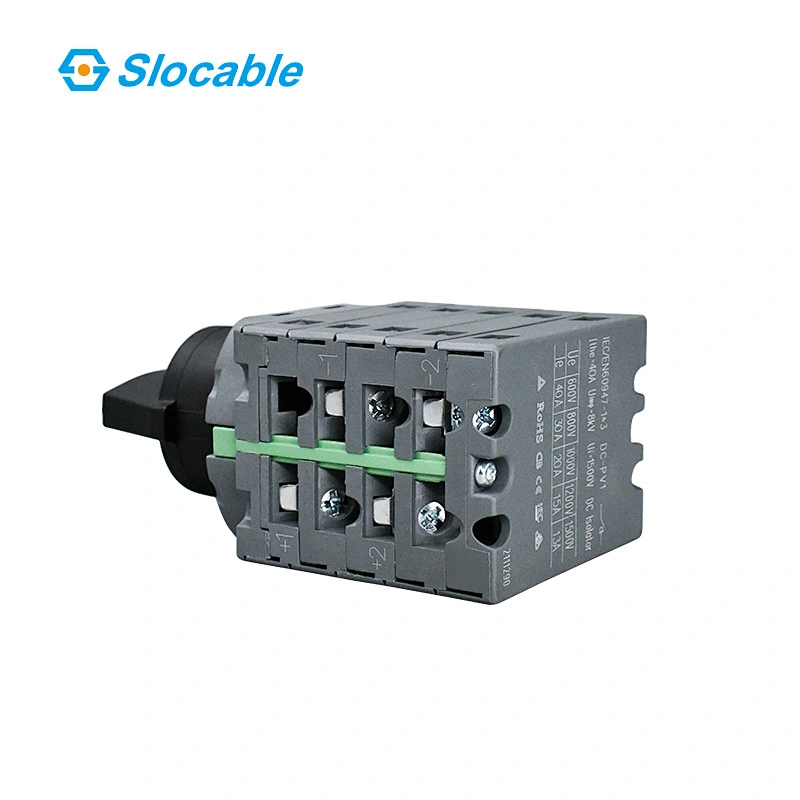

| Application | Solar PV System | Item | 1500V 40A-50A Single Hole Mounting DC Isolator Switch |
| Max. Voltage | 1500V DC | Max. Current | 55A |
| Rated Current | 40A-55A | Operation Temperature | -40℃~ +85℃ |
| Certificate | TUV, CE, CB, SAA, CCC | Protection Degree | IP66 Waterproof |
Product Description
Advantages of 1500V 40A Single Hole Mounting DC Isolator Switch for Solar System:
- Non-polar DC isolating switch.
- Current up to 40-55A.
- Modular design, optional 2-8 levels.
- Positive or negative contact is optional.
- Single hole installation.
- Dynamic sealing design and world-class sealing materials guarantee IP66 protection.
- DC 1500V insulation withstand voltage design, passed IEC/EN60947-3:2009+A1+A2, AS60947.3, UL508I, TUV, CE, CB, SAA, certification.

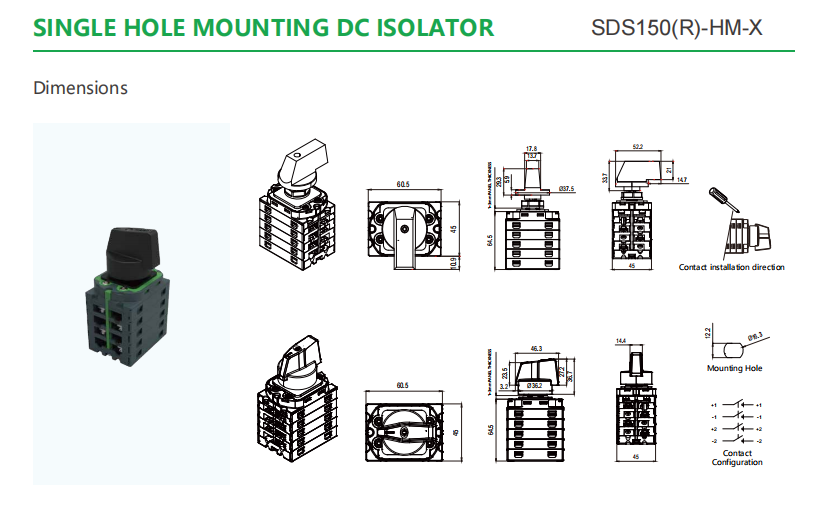

Technical Data
Product Picture
