Overview
| Place of Origin | Guangdong, China | Brand Name | Slocable |
| Model Number | SDSH40/50 | Item | Door Clutch Waterproof DC Isolator Switch |
| Application | Solar PV System | Protection Degree | IP66 |
| Max. Voltage | 1500V | Max. Current | 32A |
| Pole | 2P/4P/6P/8P | Rated Current | 16A/25A/32A |
| Certificate | TUV, CE, CB, SAA, CCC | Operation Temperature | -40℃~ +85℃ |
| Connection | Stable Working Status | Mounting | Din Rail Mounting |
Product Description
Advantages of Door Clutch Waterproof DC Isolator Switch:
- Ding rail and base mounting isolators can be installed in control boxes, distribution boxes and junction boxes. IP20 protection level (prevents fingers from touching internal parts of electrical equipment).
- Compact and elegant structure and modular design, multi-level contacts can be installed in the longitudinal section, optional 2-10.
- Incorporating a user independent switching action, spring mechanism, to ensure a very fast break/make action, ensuring that the disconnection of the load circuits and suppression of the arc normally occurs within 5ms.
- DC Isolator Switch uses flame resistant materials, with a isolation class of UL94V-0, is employed, so that under ambient temperatures -40 ℃ ~+85℃, DC Isolator Switch can work normally.
- DC 1500V operational voltage design, passed IEC ,TUV, CE certification.

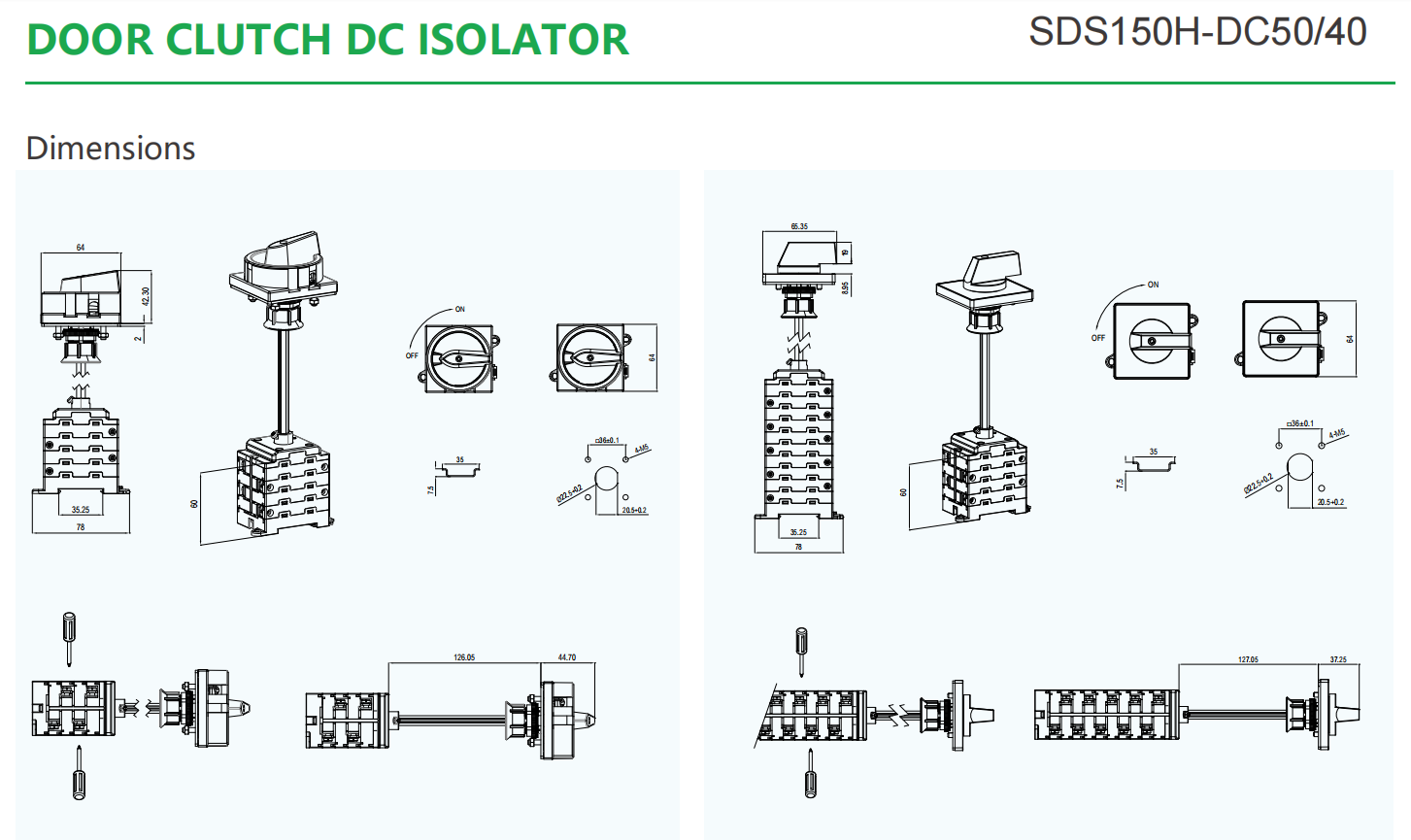

Technical Data
