Overview
Product Description
Advantages of Low voltage DC Circuit Breaker :

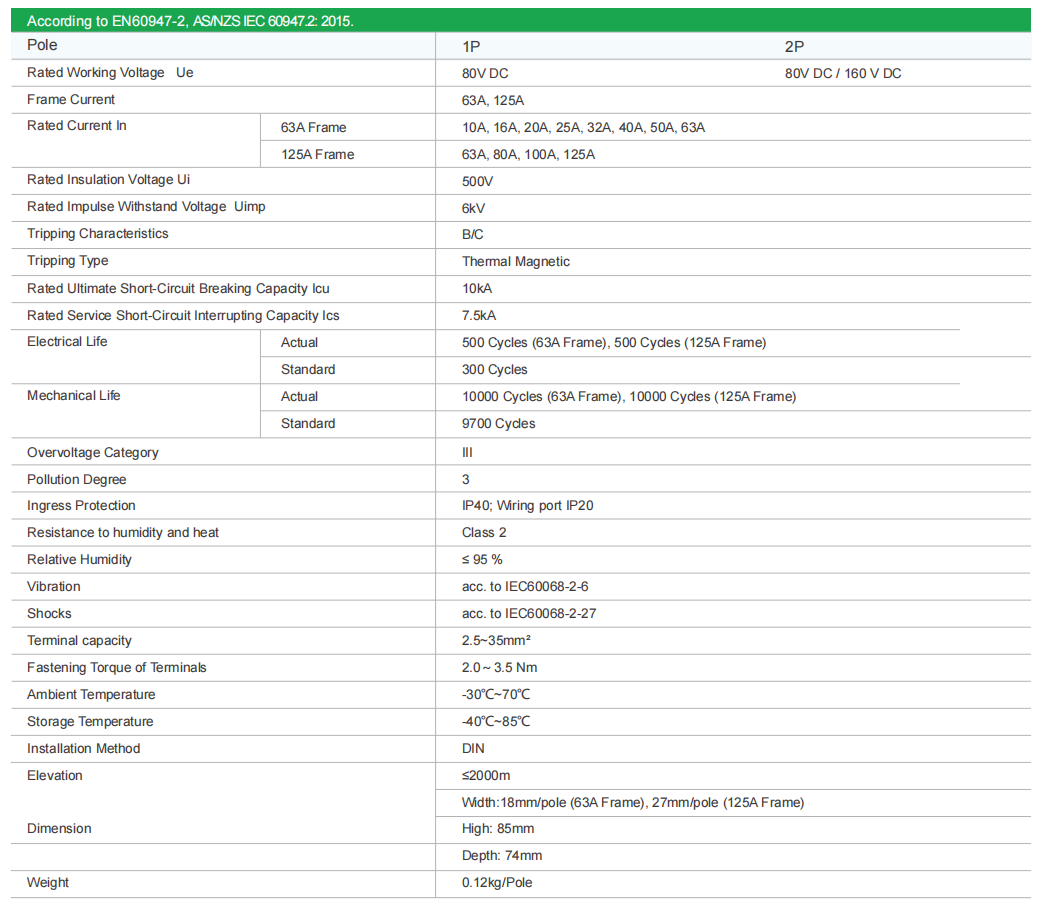

| Place of Origin | Guangdong, China | Brand Name | Slocable |
| Model Number | SBS-L DC Circuit Breaker | Item name | Low voltage DC Circuit Breaker for solar system |
| Materia | PPT | Relative humidity | ≤ 95 % |
| Poles Number | 1P/2P | Max Voltage | 160V |
| BCD Curve | B & C | Application | Solar PV System |
| Certificate | TUV, CE,CB,SAA, IEC, EN60947-2 | Terminal capacity | 2.5~35mm² |
| Rated current | Up to 125A of dc circuit breaker | Rated voltage | 80V/160V DC |
| Breaking capacity | 10KA | Ambient temperature | -30℃~70℃ |
Product Description

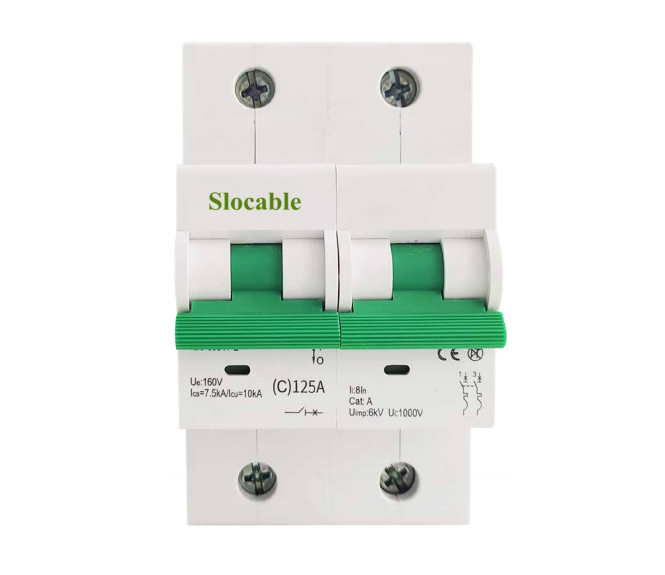

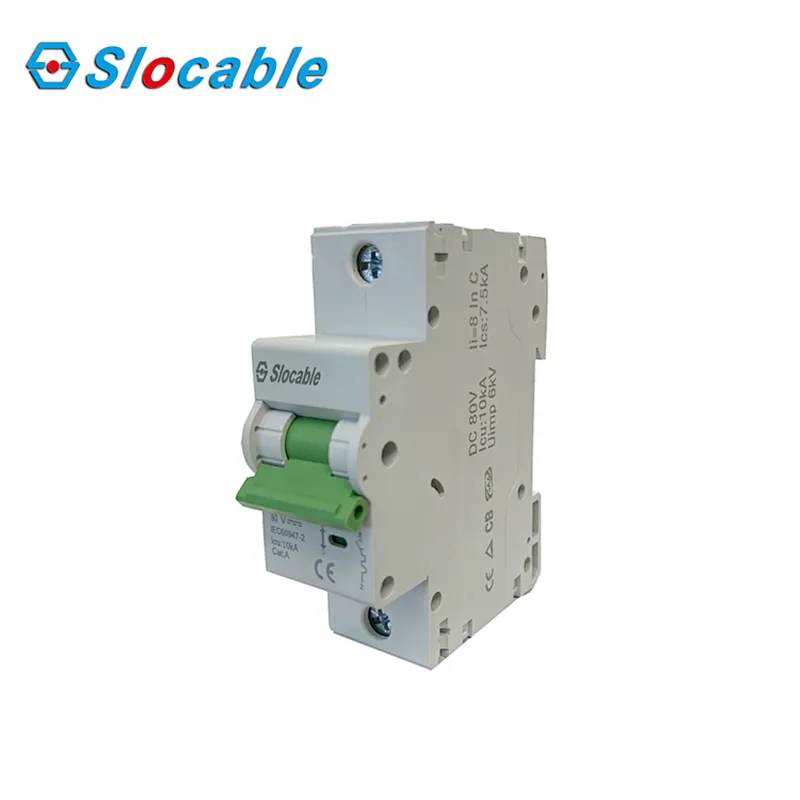

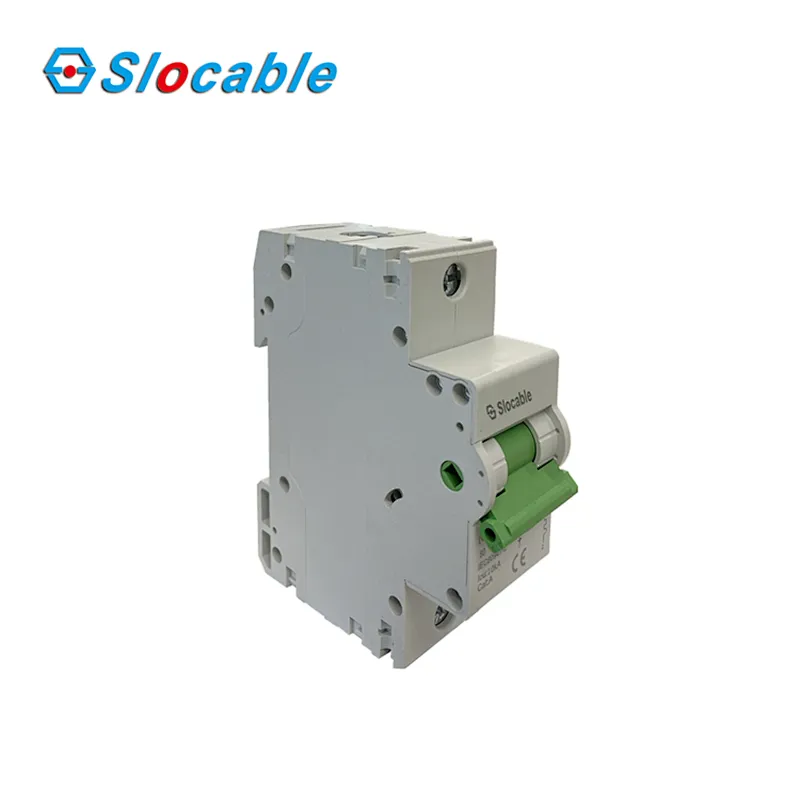

DC Miniature Circuit Breaker SLOBS-L Series, with capacities of load isolation and overload/short circuit protection, are designed for PV, energy storage and other DC applications, mainly placed between batteries and hybrid inverters. Max voltage up to 160VDC, current up to 125A. The main designing criteria is to provide scientific arc extinguishing and flash barrier technology to fulfill quick and safe current inter-ruption.
Advantages of Low voltage DC Circuit Breaker :
- Protection Functions: overload, short circuit.
- Rated short circuit breaking capacity Icu up to 10 kA.
- Non-polarity, Easy wiring.
- Rated Current In up to 125A.
- Rated Voltage Ue up to 160V.
- Designed for PV, energy storage and other DC applications.
