Overview
| Place of Origin | Guangdong, China | Brand Name | OEM |
| Model Number | SBS-H-125 dc circuit breaker | Type | MINI, 125 amp MCCB circuit breaker |
| Application | Solar PV System | Rated Worling Voltage Ue | 250V/500V/750V/1000V(optional) |
| Pole | 1P/2P/3P/4P(optional) | Rated Current In | 63A/80A/100A/125A(optional) of MCB circuit breaker |
| BCD Curve | B & C | Material | PC plastic |
| Certificate | TUV, CE,CB,SAA, IEC, EN60947-2 | Breaking Capacity | 6KA of dc MCB circuit breaker |
| Ambient Temperature | -30℃~+70℃ | Relative Humidity | ≤ 95 % |
| Protection Degree | IP20 MCCB Circuit Breaker | Terminal Capacity | 2.5~35mm² |
Product Description

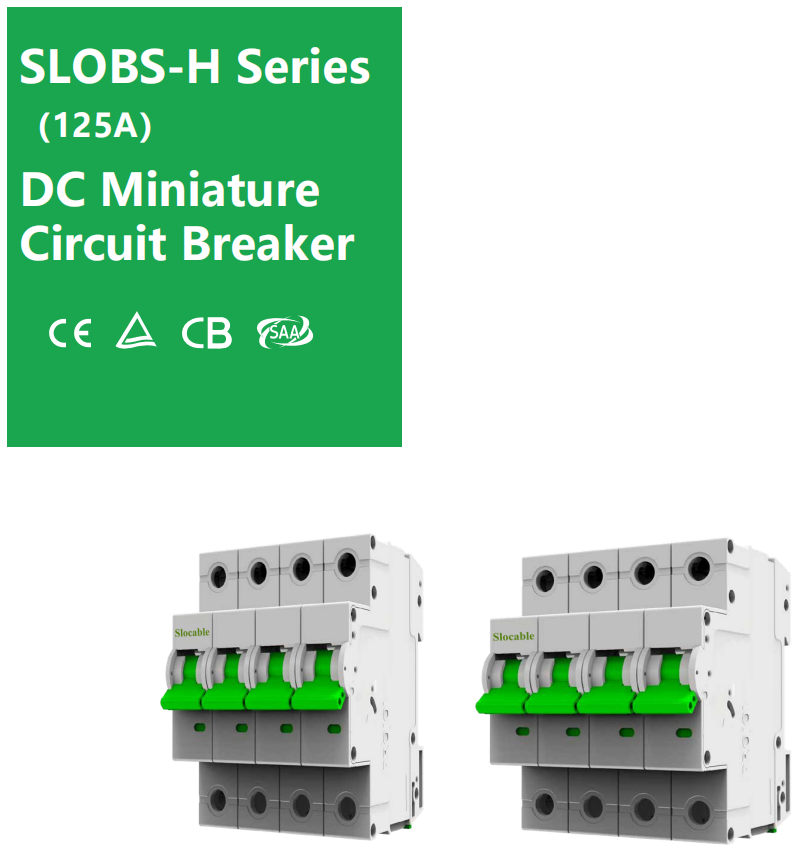

DC Miniature Circuit Breakers SLOBS-H, with capacities of load isolation and overload/short circuit protection, are designed for PV, energy storage and other DC applications, mainly placed between batteries and hybrid inverters. Max voltage up to 1000VDC, current up to 125A. The main designing criteria of this circuit breakers is to provide scientific arc extinguishing and flash barrier technology to fulfill quick and safe current interruption.Tested according to EN 60947-2, AS/NZS IEC 60947.2: 2015.
Advantages of 125A DC MCB Circuit Breaker for Solar Energy：
- Protection Functions: overload, short circuit
- Rated short circuit breaking capacity Icu up to 15 kA
- Non-polarity, Easy wiring
- Rated Current In up to 125A
- Rated Voltage Ue up to 1000V
- Designed for PV, energy storage and other DC applications

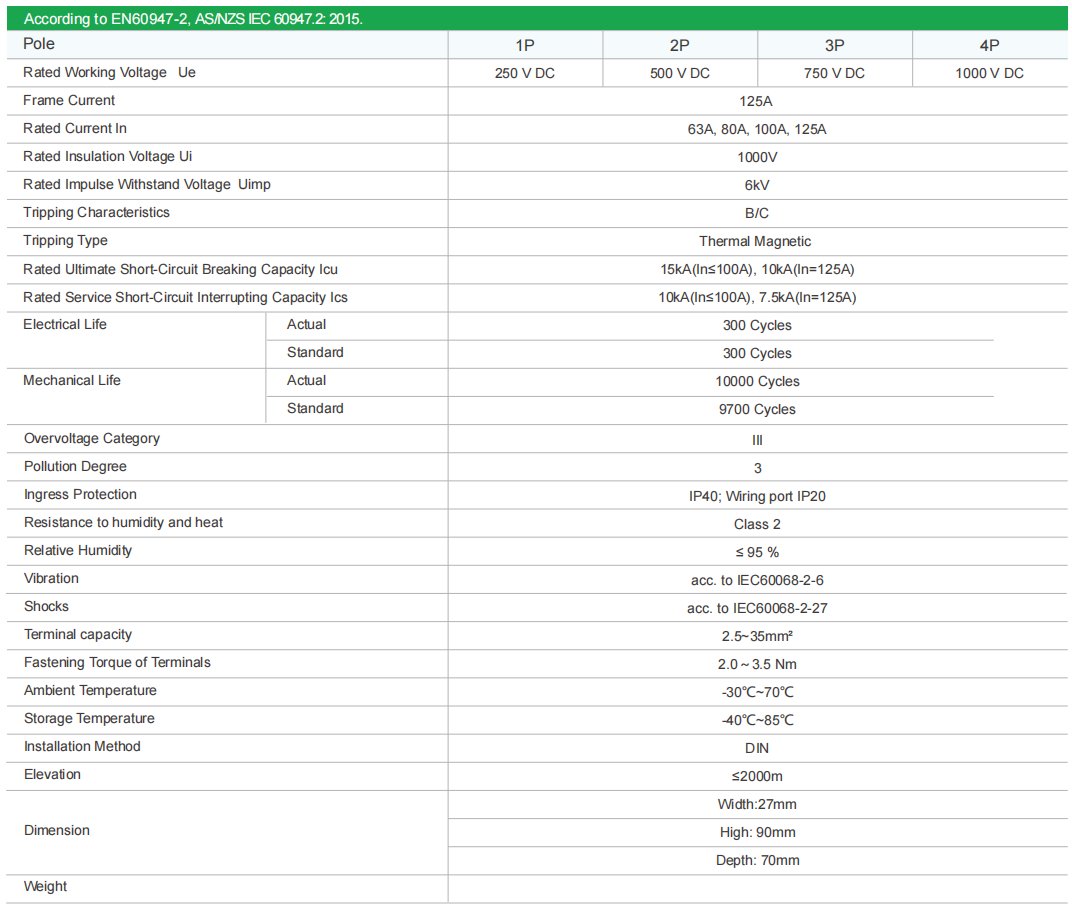

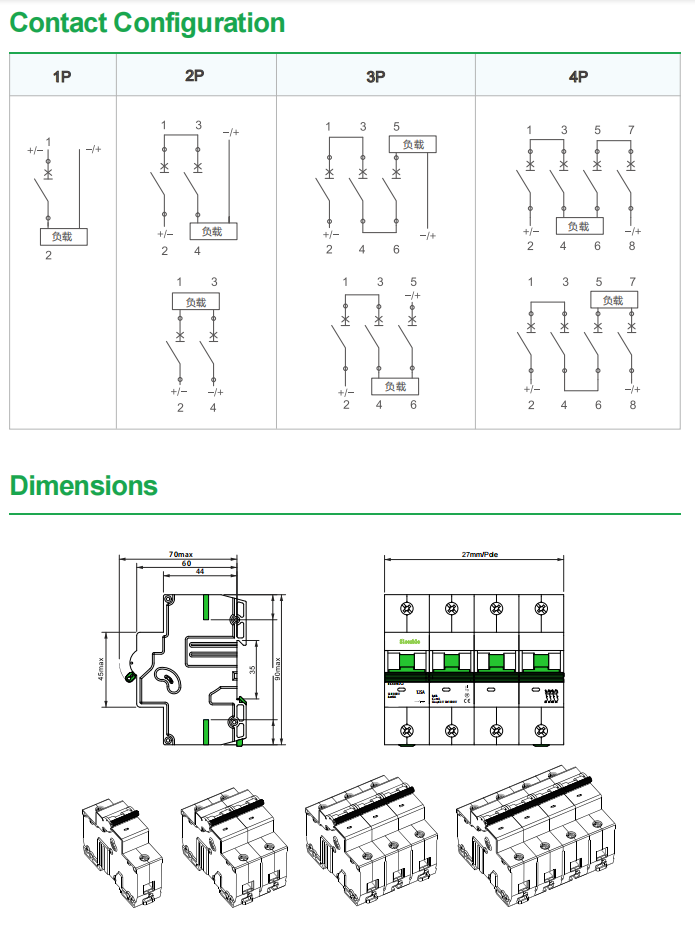

Technical Data

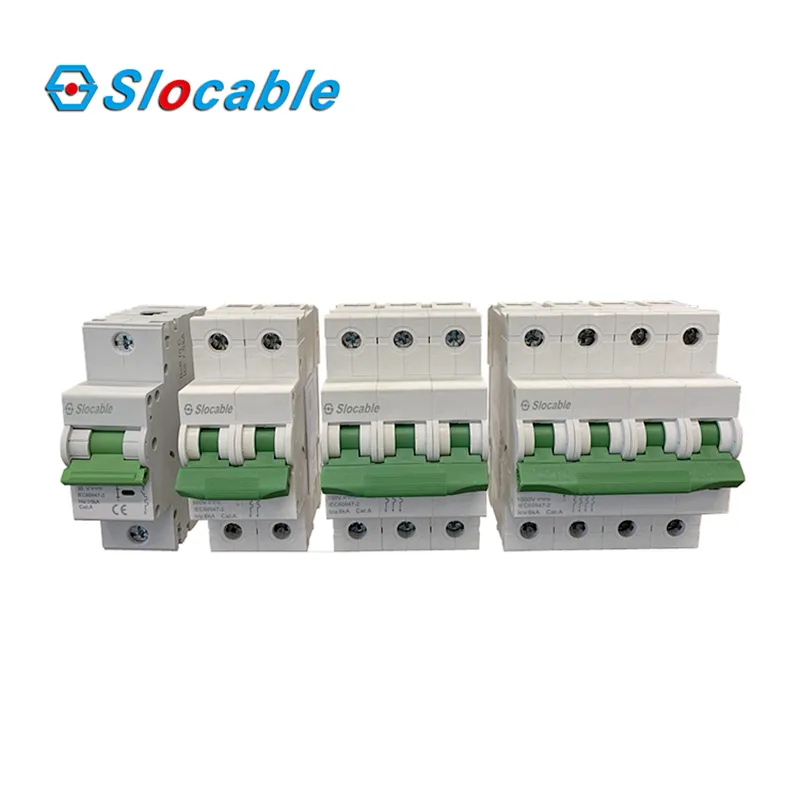

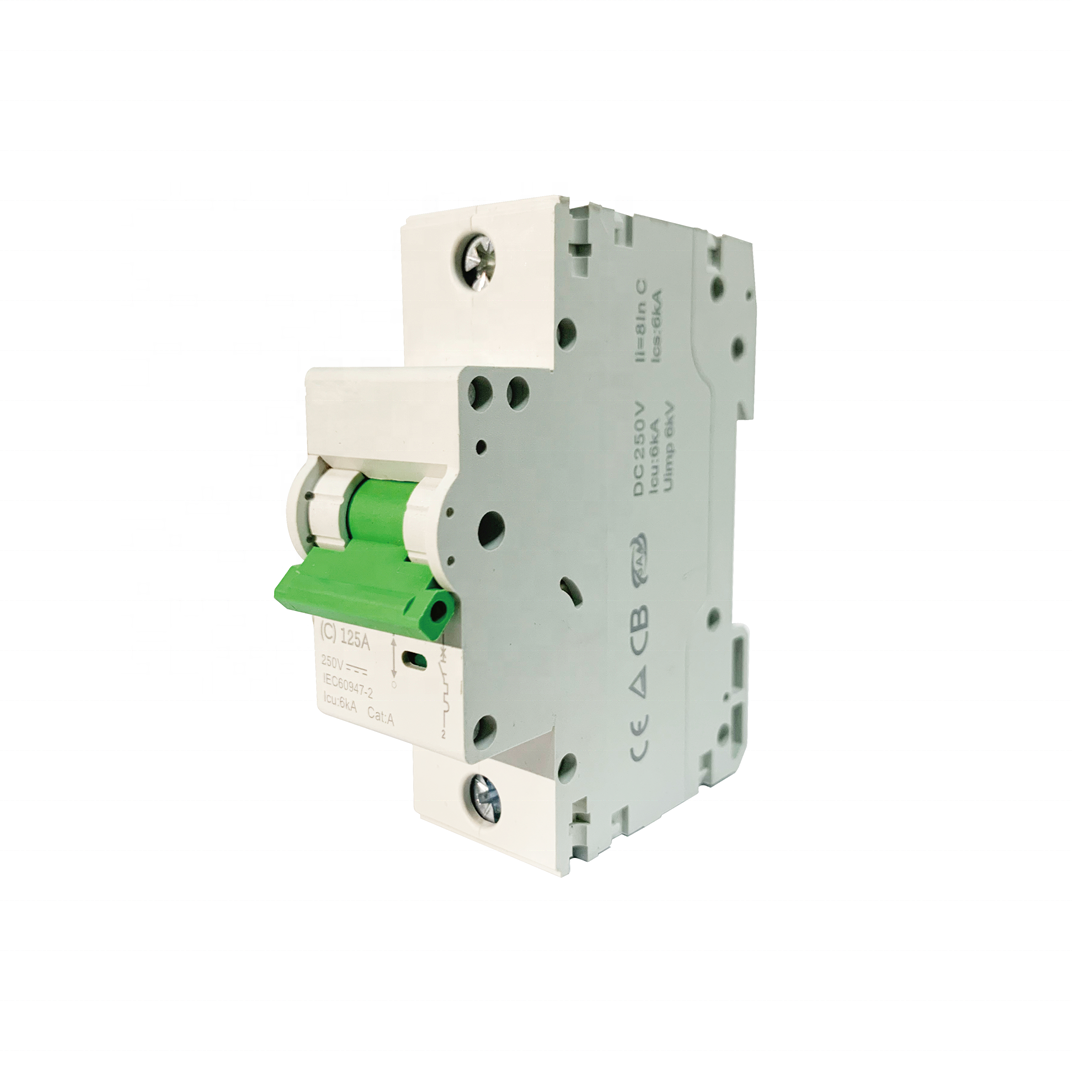

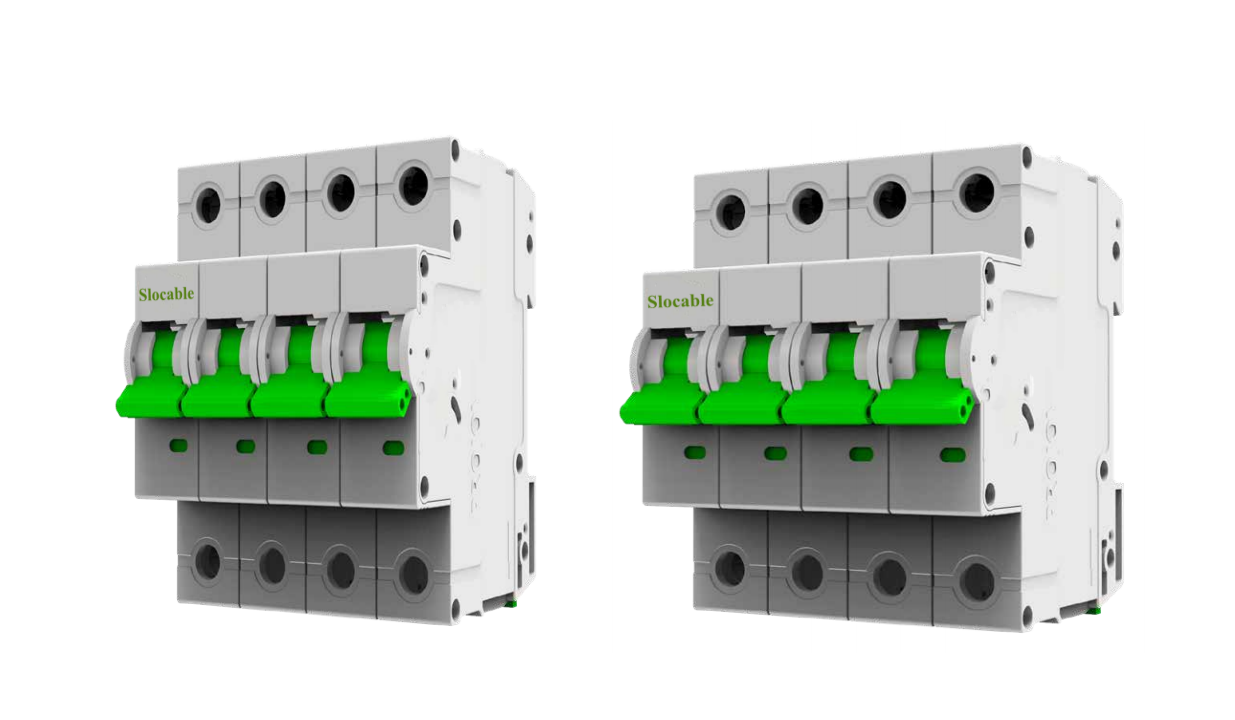

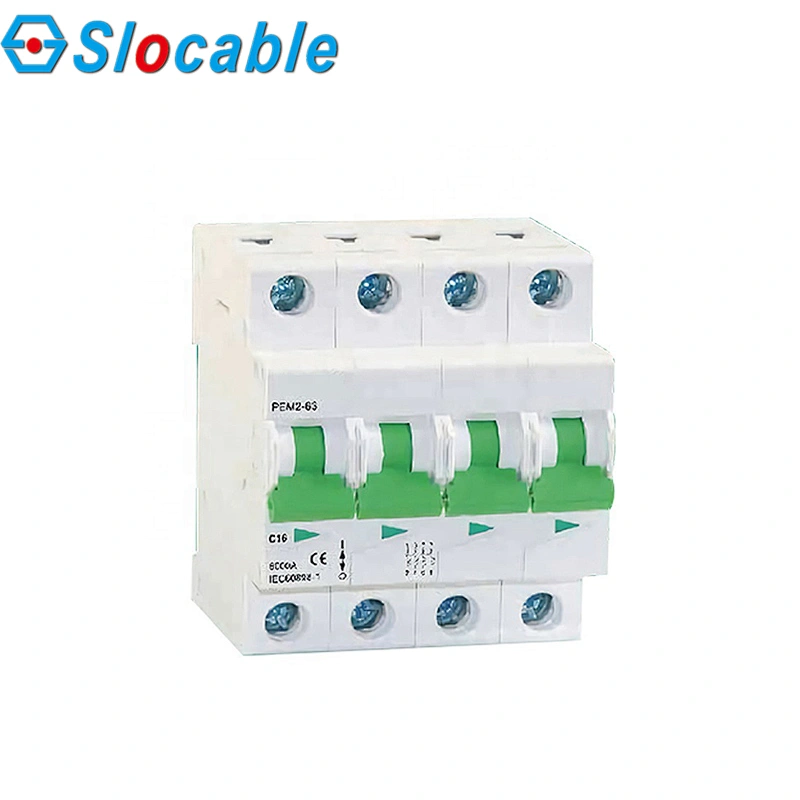

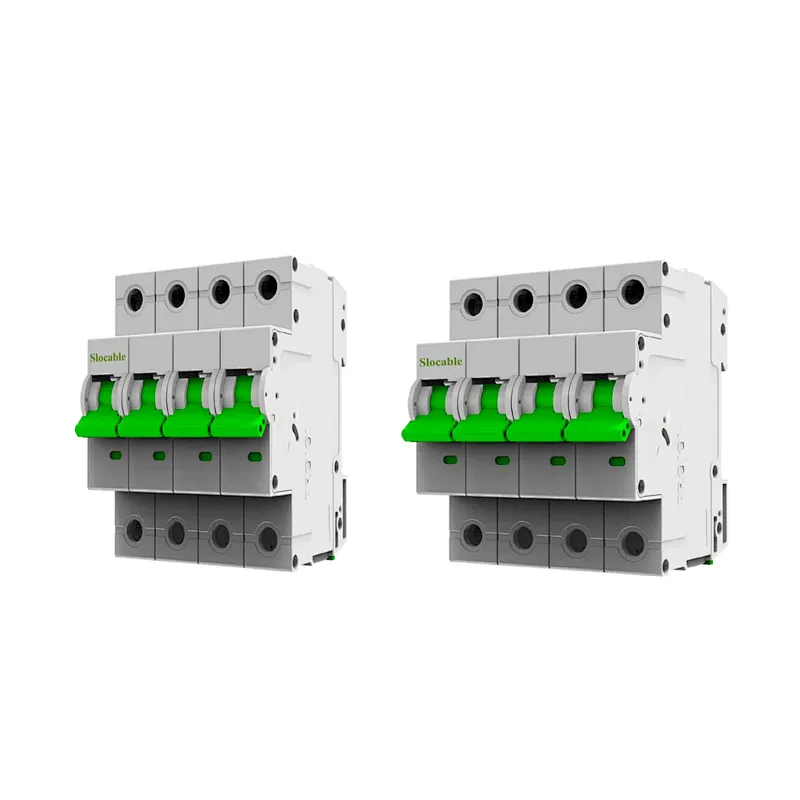

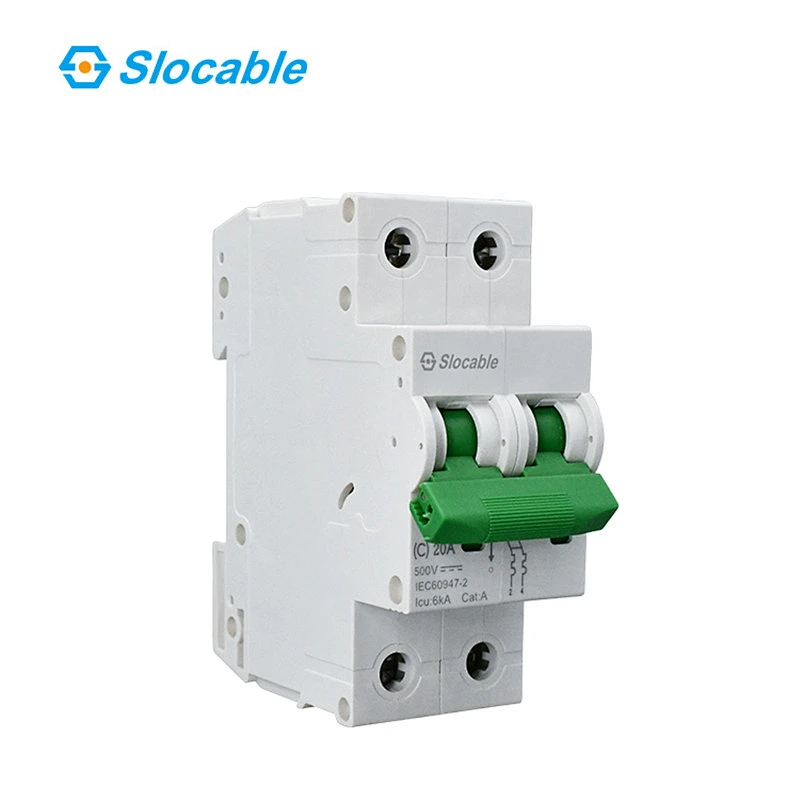

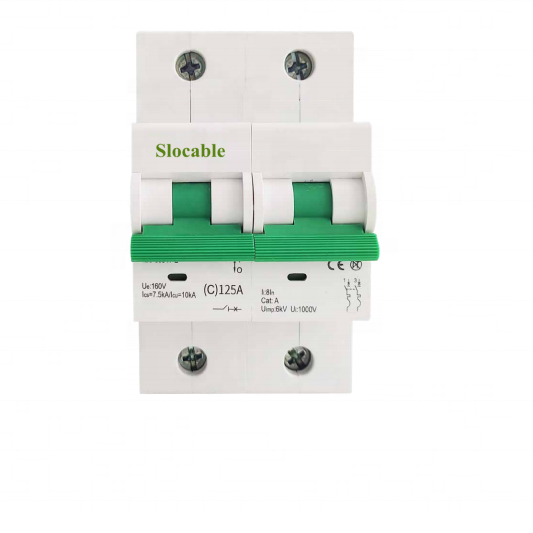

Product Picture
