Overview
| Place of Origin: | Guangdong, China | Brand Name: | OEM |

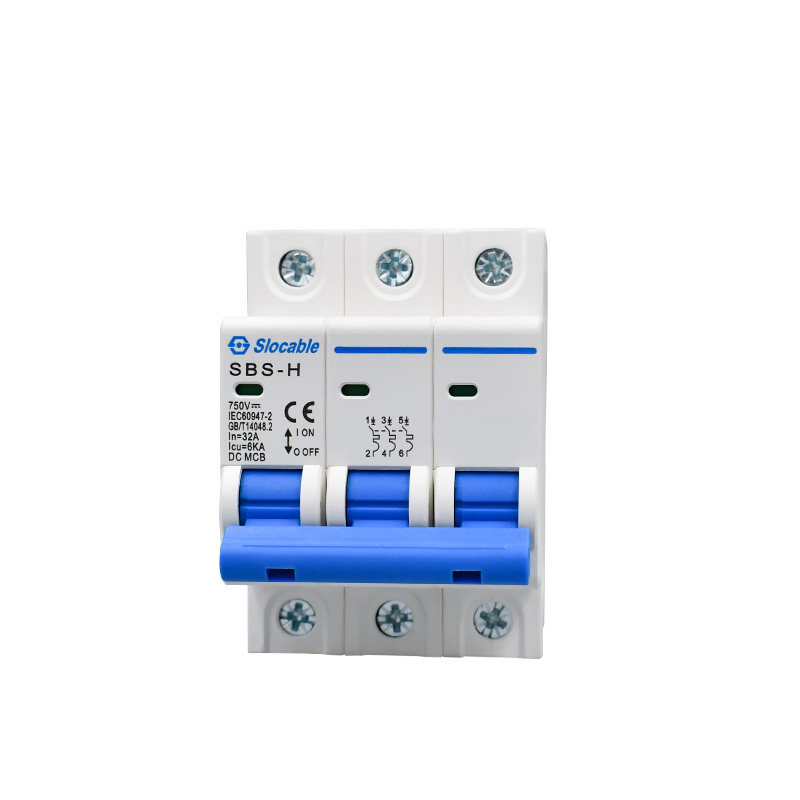

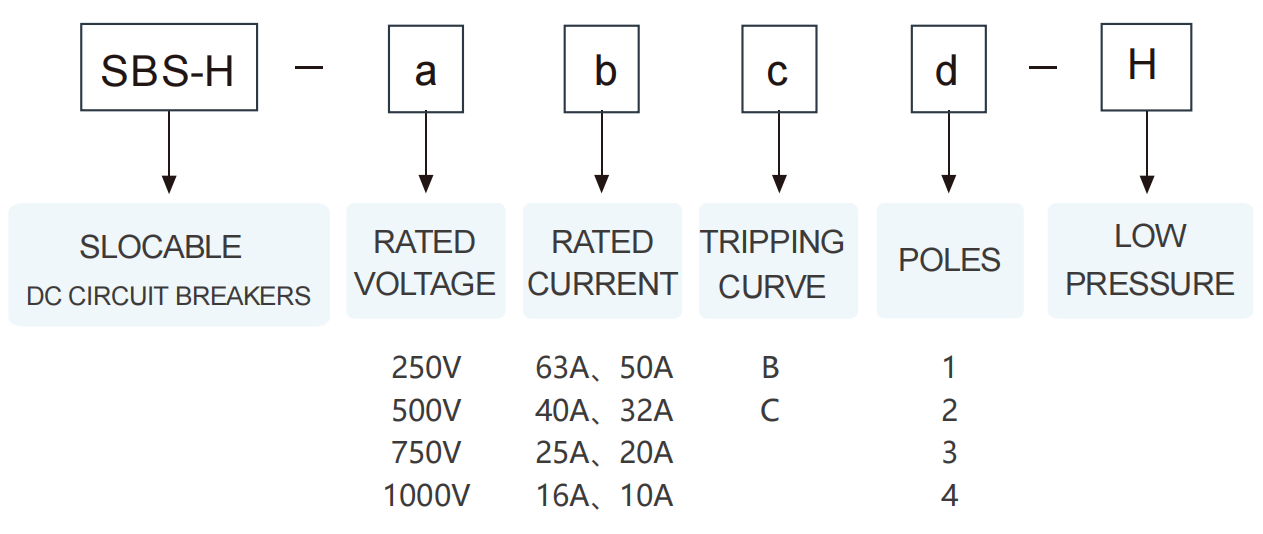

| Model Number: | SBS-H-63 dc Circuit Breaker | Item: | 63A DC MCB Miniature Circuit Breaker |
| Mounting Type: | Din Rail Mount | Rated Voltage: | 250V/500V/750V/1000V |

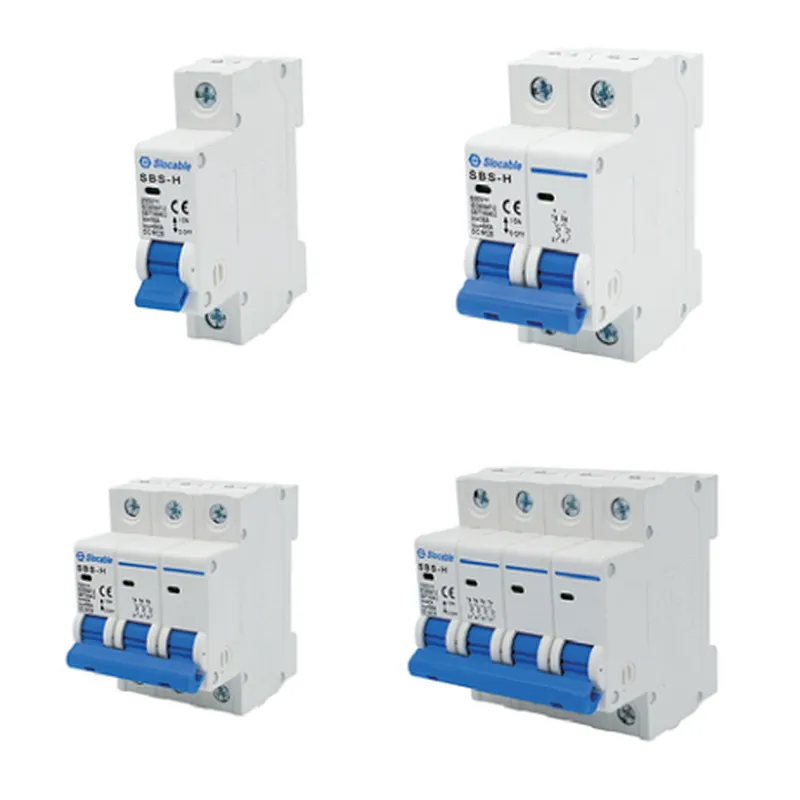

| Pole: | 1P/2P/3P/4P(optional) | Material: | PC plastic |

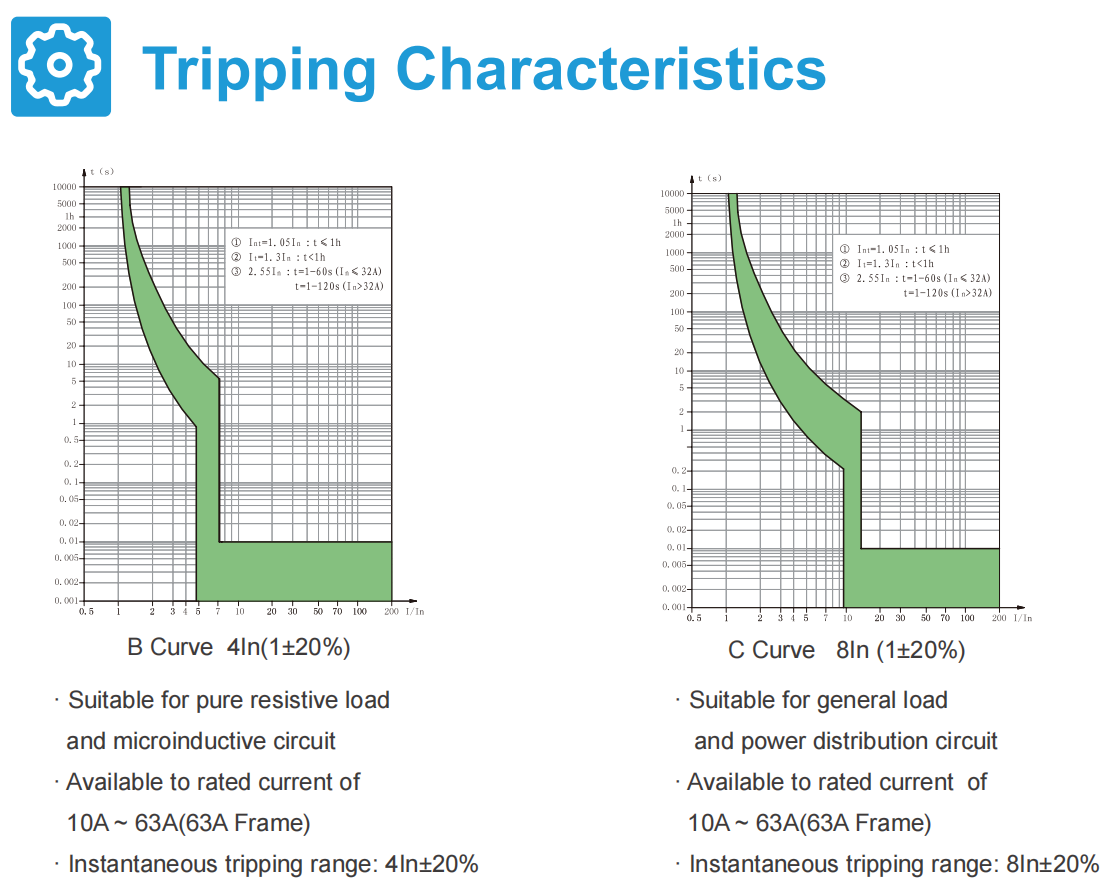

| BCD Curve: | B & C | Rated Current: | 16/25/32/ 63A of DC Circuit Breaker |
| Certificate: | TUV, CE,CB,SAA, IEC, EN60947-2 | Breaking Capacity: | 6KA of dc circuit breaker |
| Application: | Solar PV System | Relative Humidity: | ≤ 95 % |
| Ambient Temperature: | -30℃~+70℃ | Terminal Capacity: | 2.5~35mm² |
Product Description

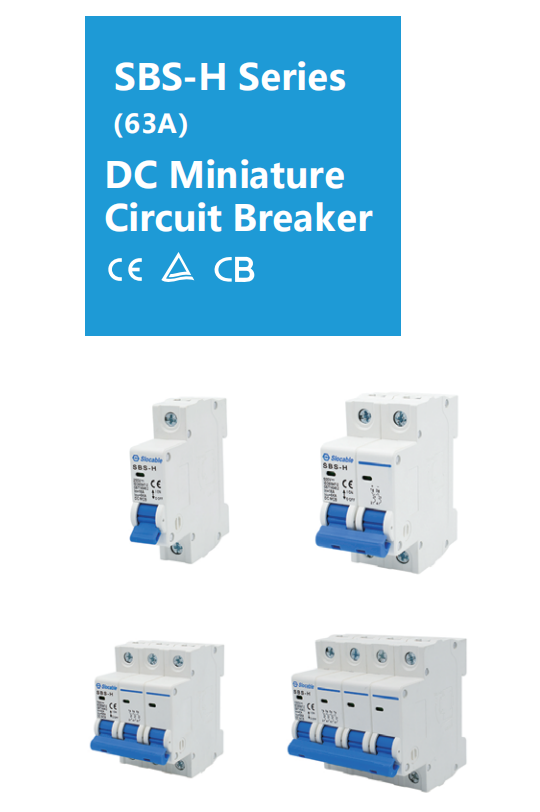

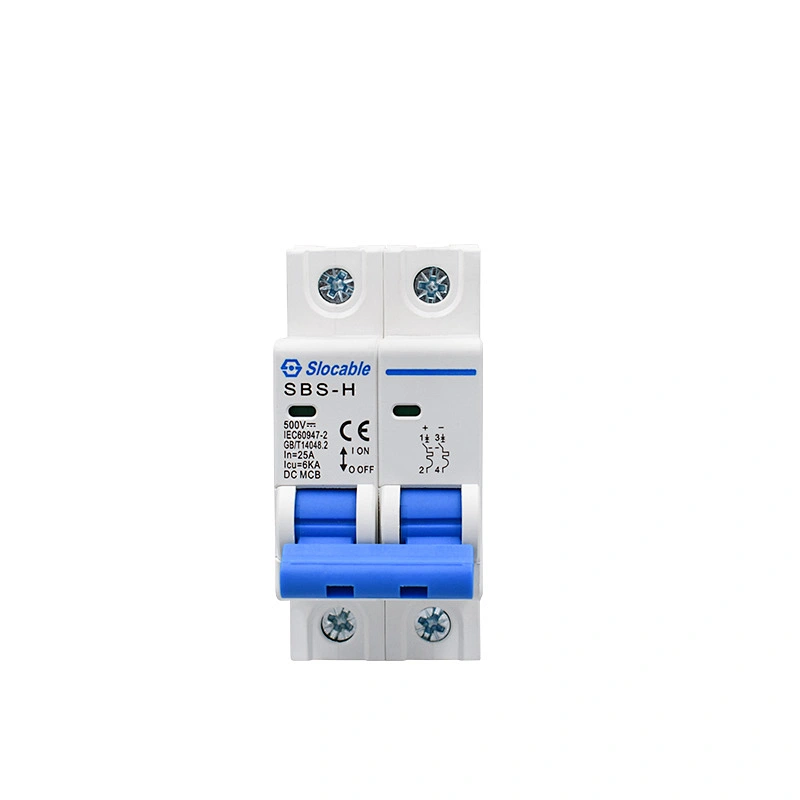

DC Miniature Circuit Breakers SBS-H, with capacities of load isolation and overload/short circuit protection, are designed for PV, energy storage and other DC applications, mainly placed between batteries and hybrid inverters. Max voltage up to 1000VDC, current up to 63A. The main designing criteria of this circuit breakers is to provide scientific arc extinguishing and flash barrier technology to fulfill quick and safe current interruption.
Advantages of DC 63A MCB Miniature Circuit Breaker for Solar System:
Protection Functions: overload, short circuit
Rated short circuit breaking capacity Icu up to 6 kA

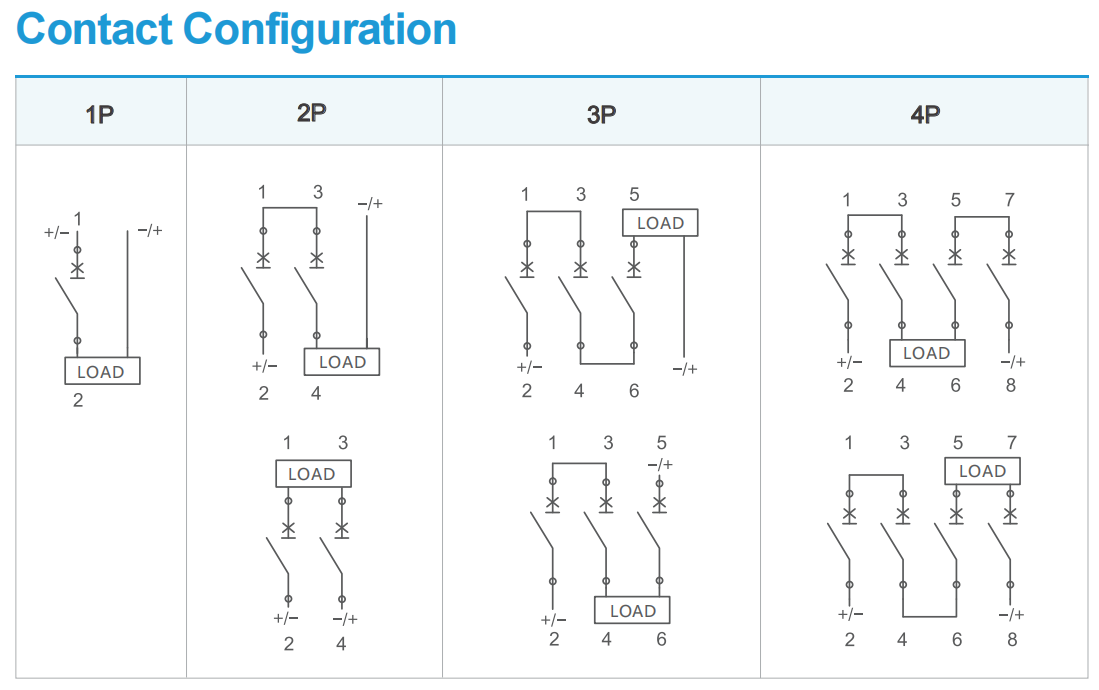

Non-polarity, Easy wiring
Rated Current In up to 63A
Rated Voltage Ue up to 1000V
Designed for PV, energy storage and other DC applications

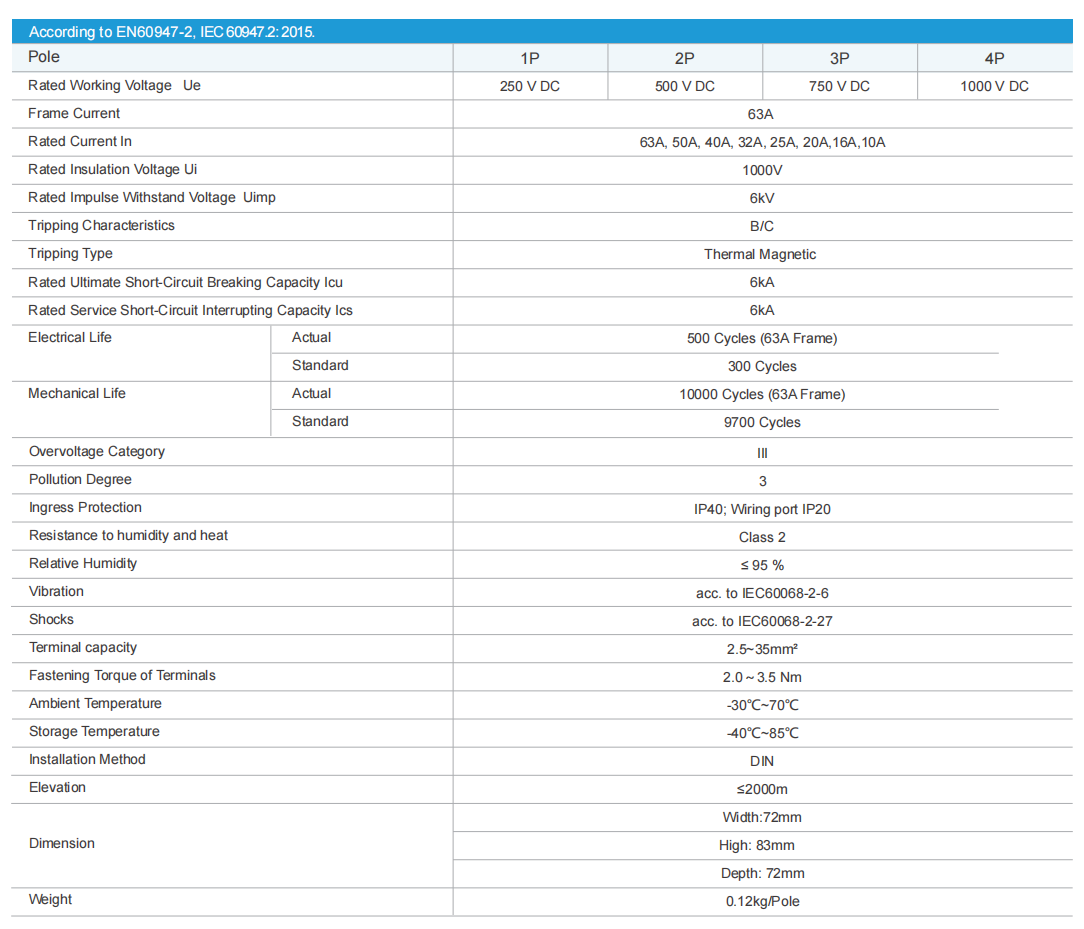

Technical Data
