Overview
| Place of Origin | Guangdong, China | Brand | Slocable |

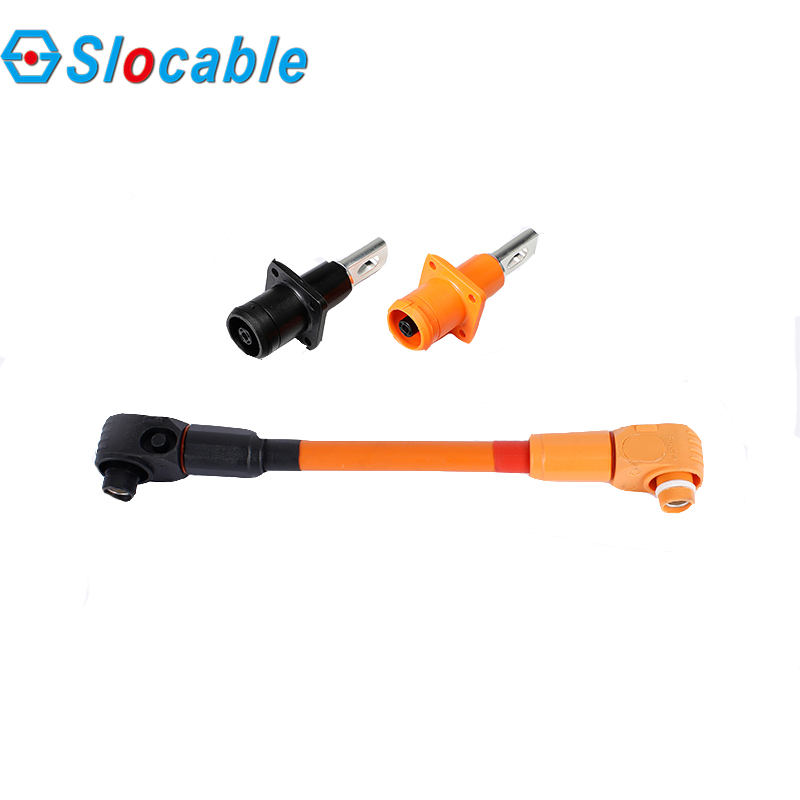

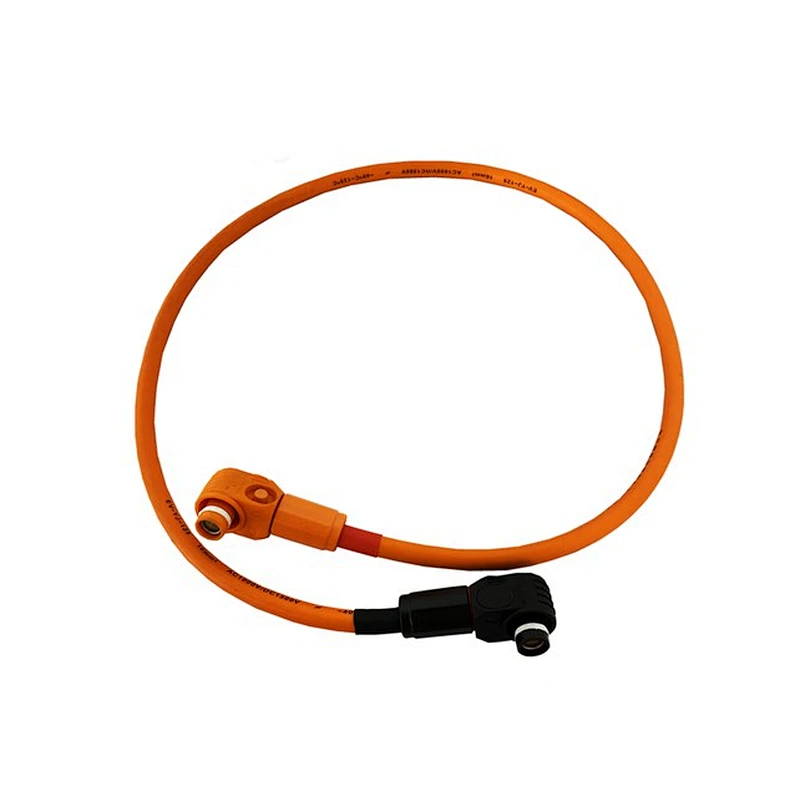

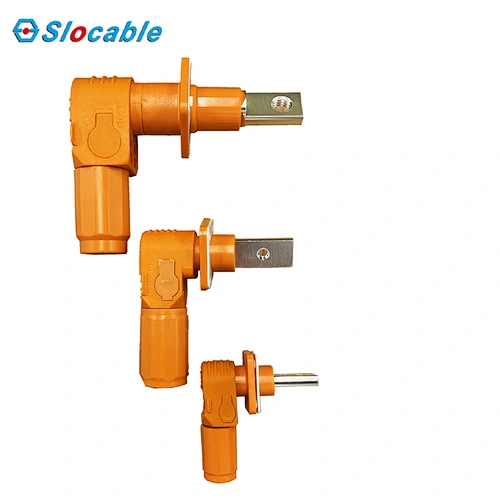

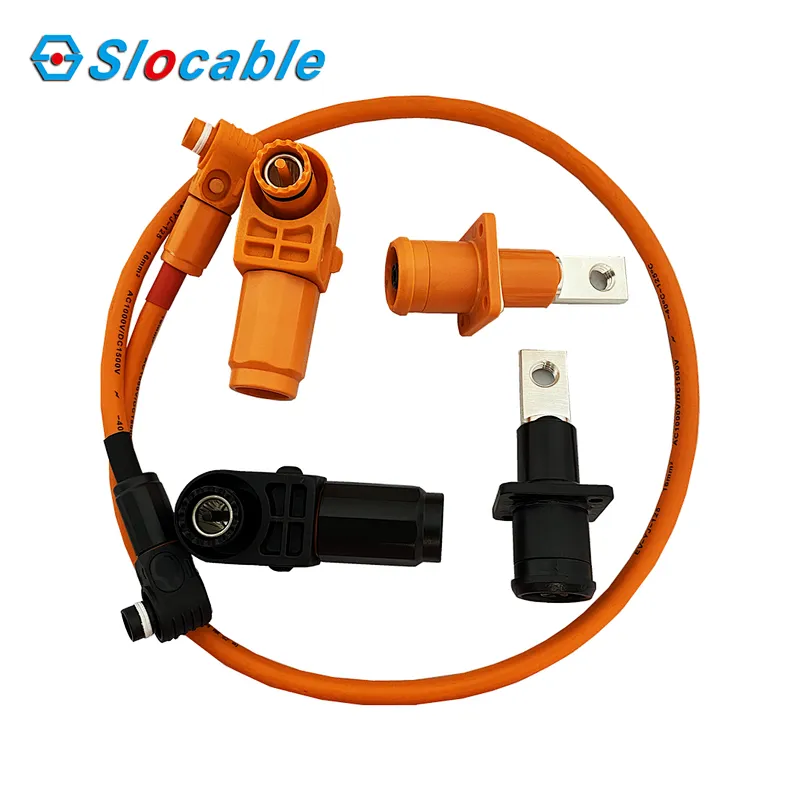

| Model Number | CN120-35 | Item | 1500V DC 120A Energy Storage Cable with Connector |
| Application | Solar system | Max current | 120A |
| Max voltage | 1500V DC | Wiring | 35mm2 |
| Contact Resistance | ≤0.5mΩ | Insulation Resistance | ≥500MΩ |
| Certificate | ISO,ROHS,CE,TUV | Protection level | IP67 |
Product Description
Advantages of 1500V DC Energy Storage Cable
- High power transmission in a compact design:rated currents up to 300 A at a voltage of 1500 V due to an effective contact resistance of less than 0.5mΩ
- Easy (dis) assembly : (un) screwing the contact of the screw mounted housing from the front
- Safe installations : visible control of the locking .status, finger protected contacts & vibration resistance
- High flexibility : different mounting possibilities contact terminations as well as 360 ° positioning for cableentry
- Certification:Complies with all relevant Energy Storage Cable standards, ICE 61984
- Free of lead and halogens
