Overview
| Place of Origin | Guangdong, China | Brand Name | Slocable |

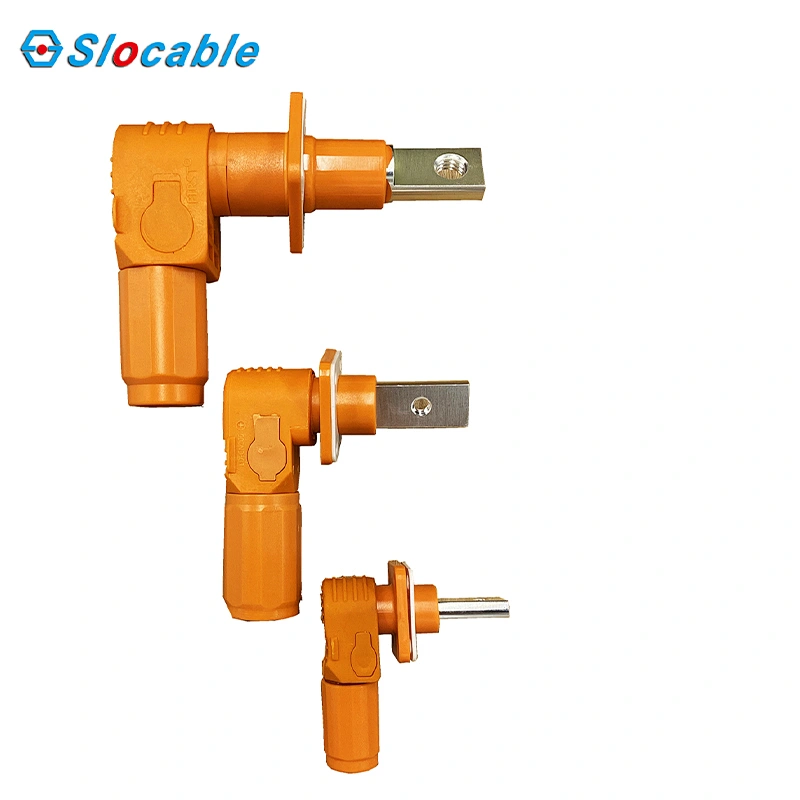

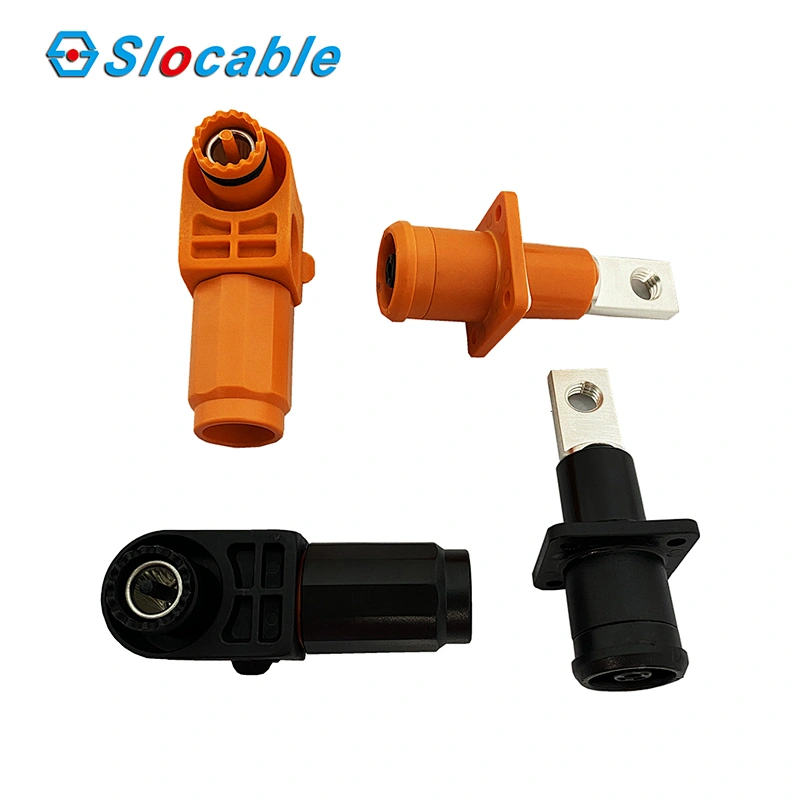

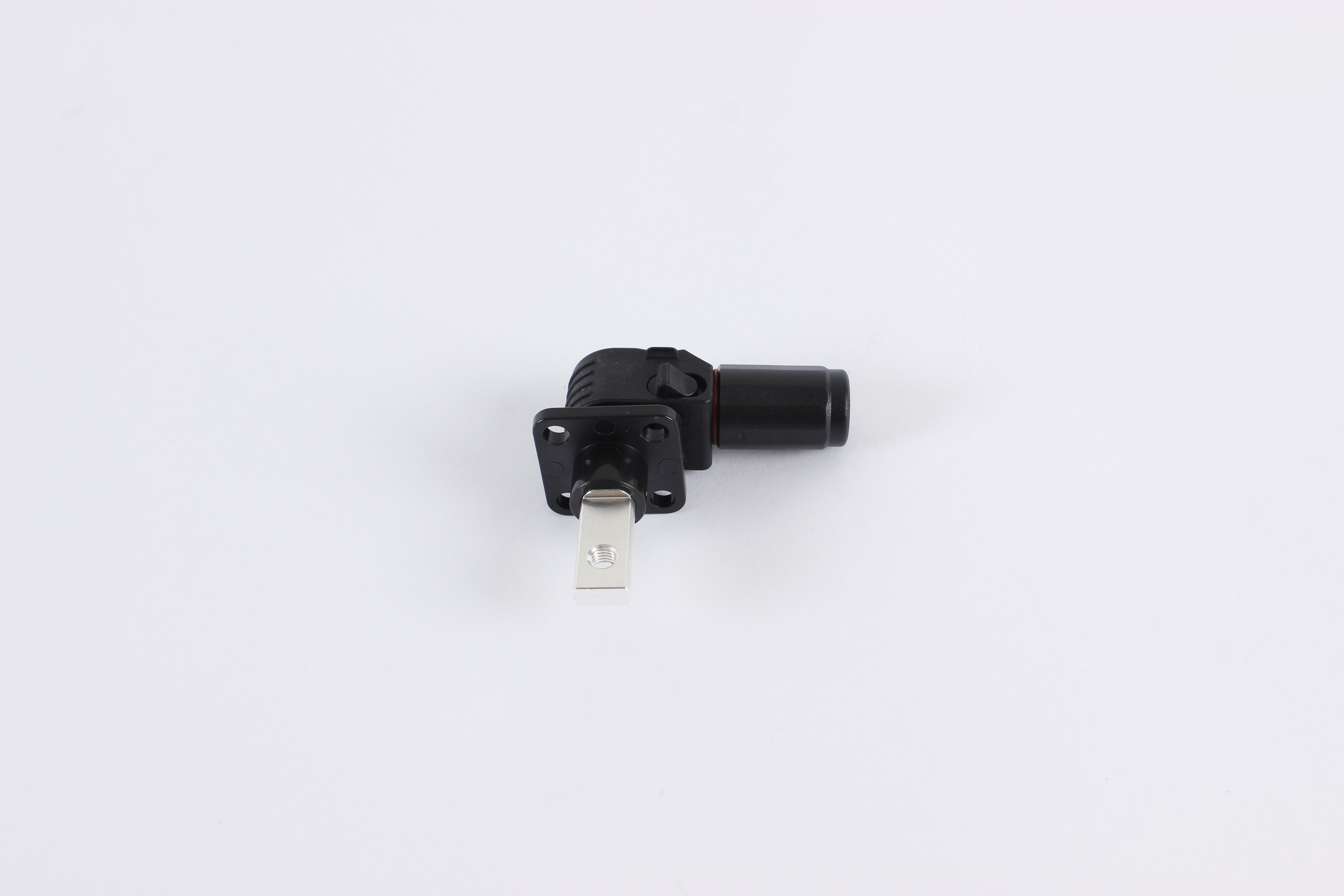

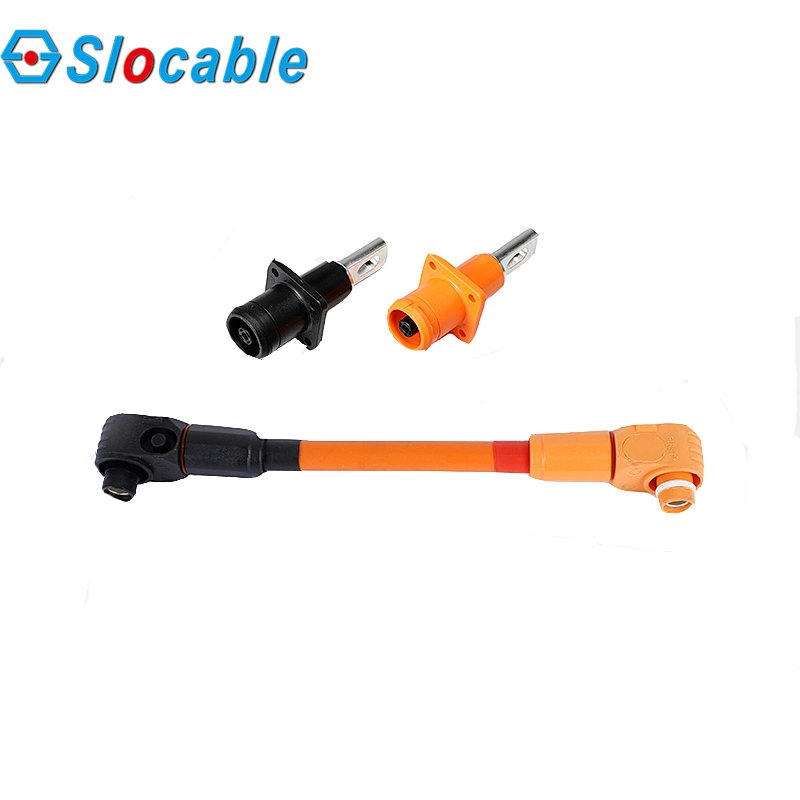

| Model Number | CN120-16/25 Energy Storage Connector | Item | 1500V 120A DC Energy Storage Connector |
| Protection Level | IP65 / IP67 | Certificates | TUV, ROHS, CE, ISO |
| Max. voltage | 1500V DC | Max. Permissible Current | 120A |
| Contact Resistance | ≤0.5mΩ | Suitable Wiring | 35mm2, 50mm2 |
| Working Temperature | -40℃~+125℃ | Insulation Resistance | ≥500MΩ |
| Application | Energy Storage System |
Product Description

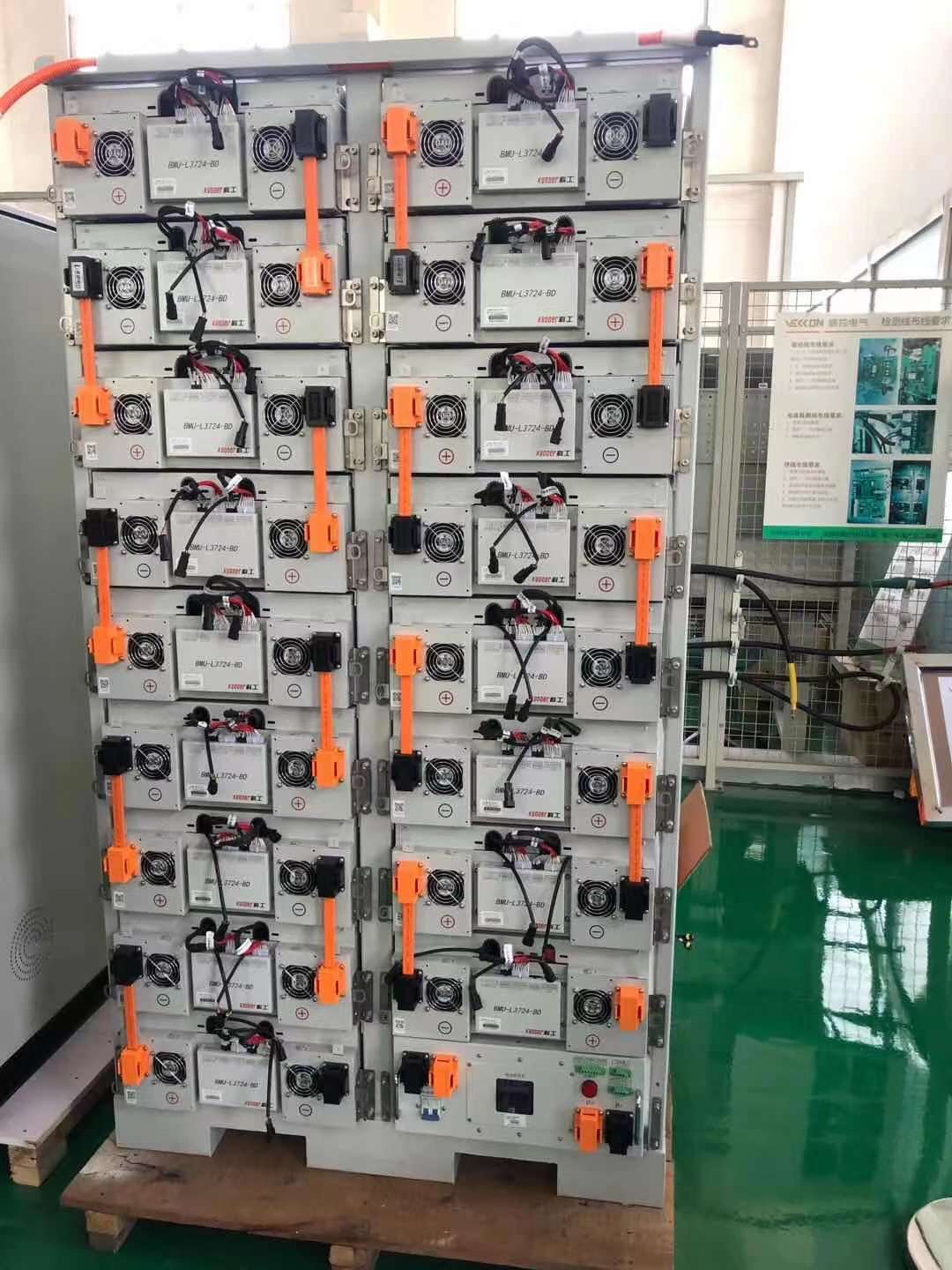

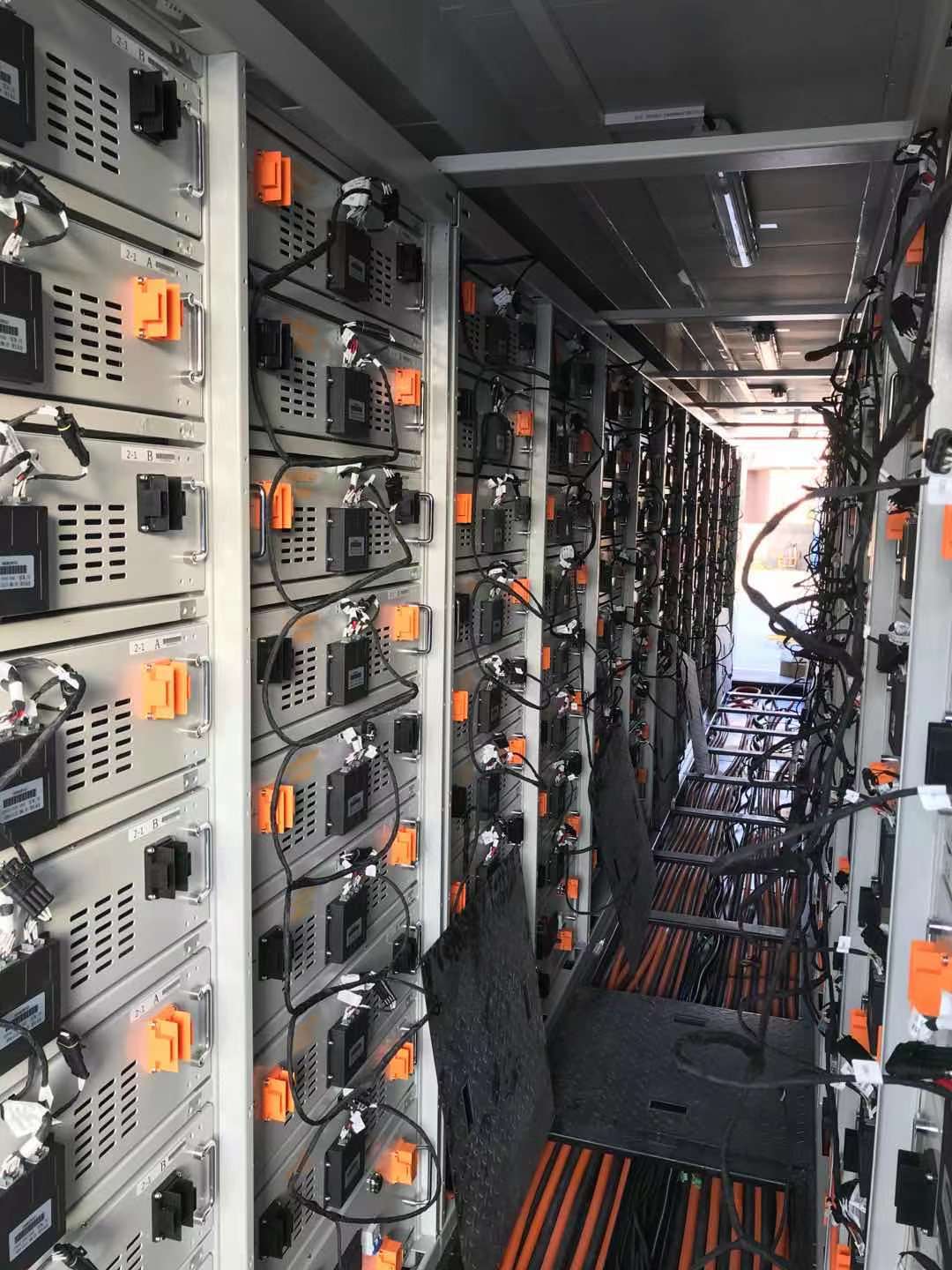

The Energy Storage Connector is used for high-voltage connection between components such as energy storage cabinet, mobile , vehicle, photovoltaic power station.
Advantages of 1500V DC Energy Storage Connector
- High power transmission:rated currents up to 300 A at 1500 V due to an effective contact resistance of less than 0.5mΩ
- Easy assembly due to (un) screwing the contact of the screw mounted housing from the front. Easy mating through a self-opening single lever
- Safe installations due to visible control of the locking .status,finger protected contacts, mechanical & colour.codingsystem and shock & vibration resistance
- High flexibility : different mounting possibilities contact terminations as well as 360 ° positioning for cableentry
- Complies with all relevant energy storage-standards, ICE 61984
- Free of lead and halogens

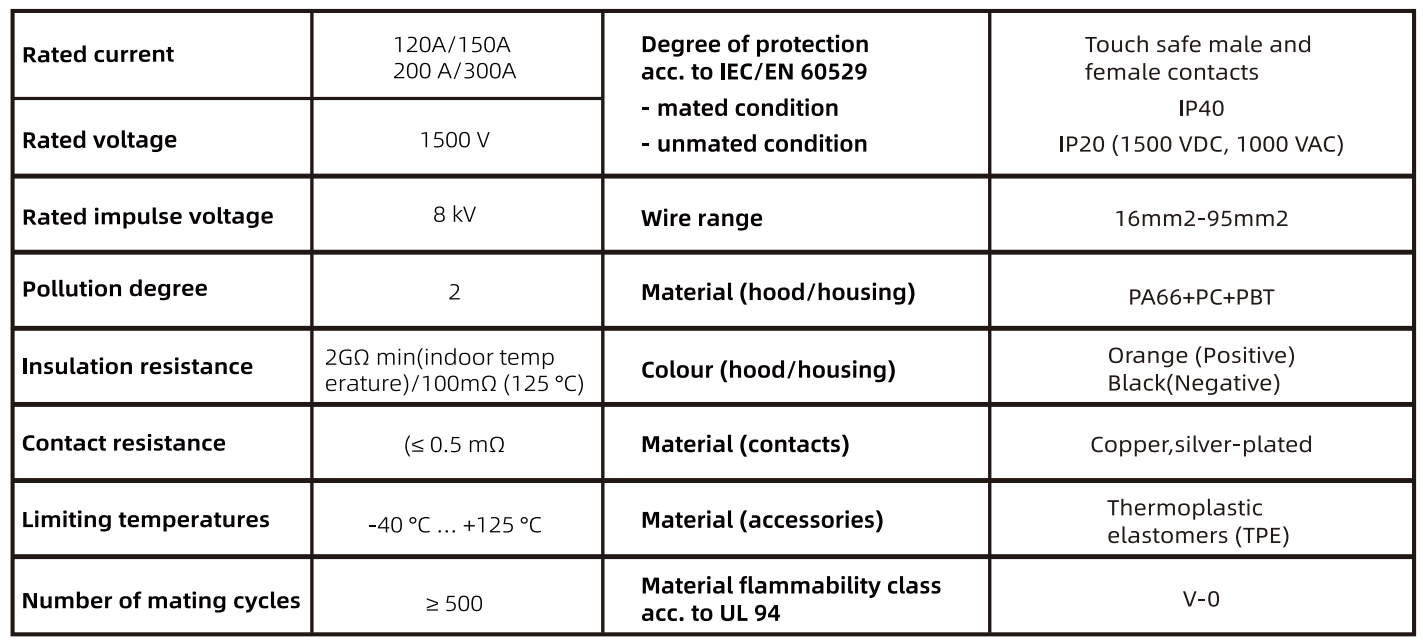

Technical Data

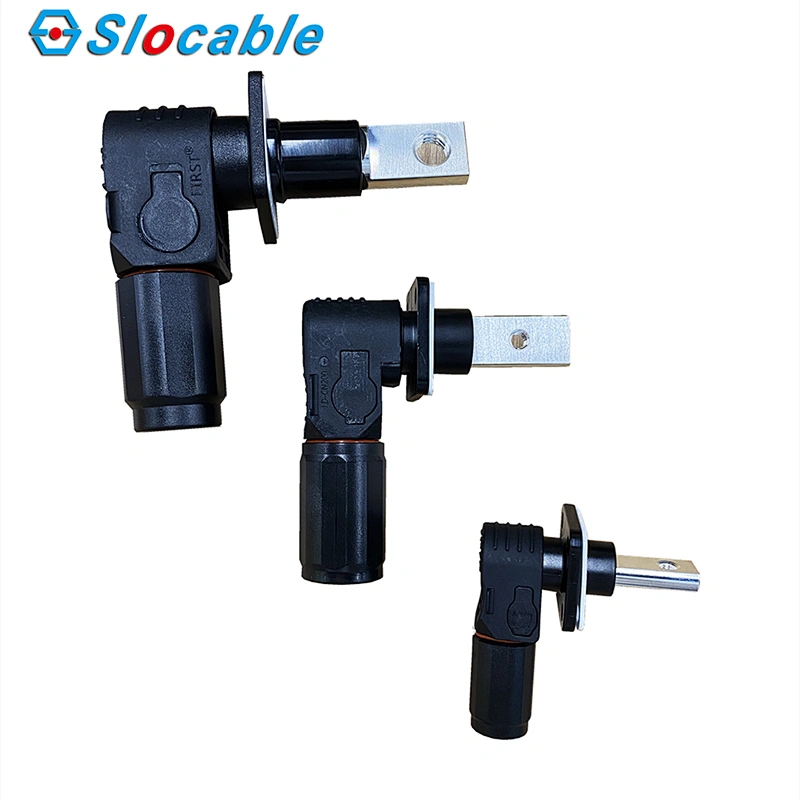

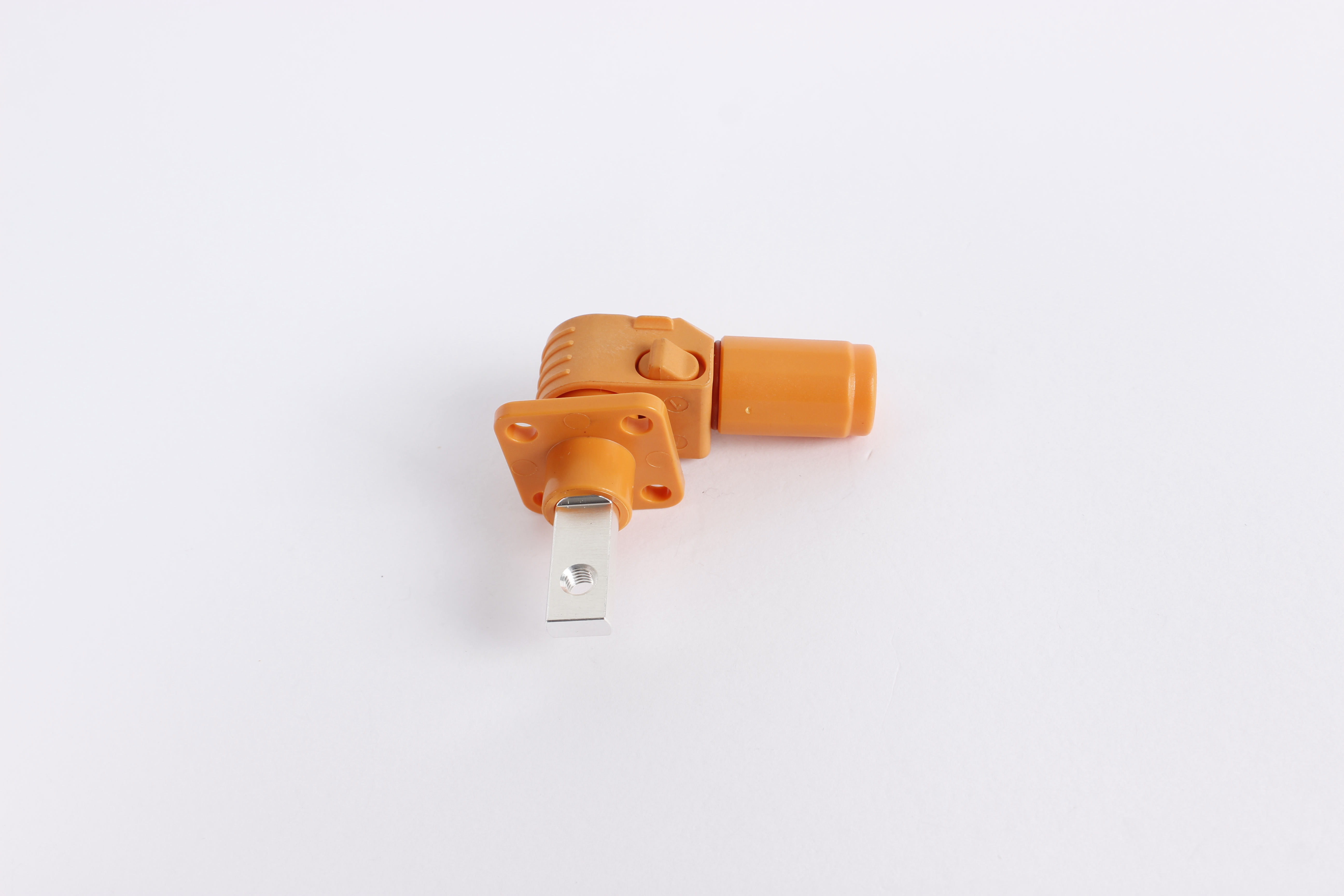

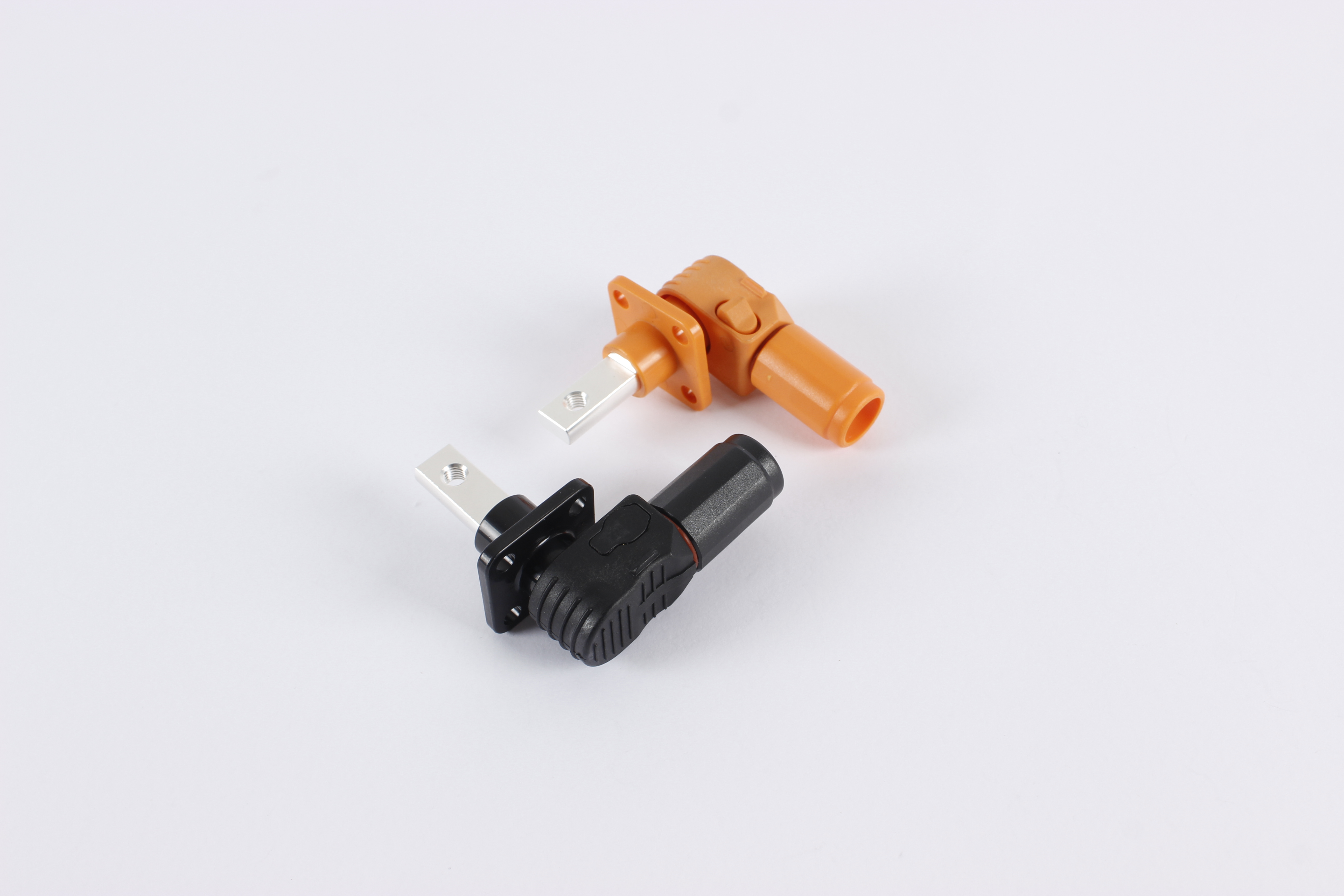

Product pictures
