Overview
| Place of Origin | Guangdong, China | Brand Name | Slocable |
| Model Number | CN40-X | Item | X Type Branch PV Cable Assembly |
| Conductor Material | Copper, Tin plated | Insulation Material | XLPE/XLPO(PV Cable) PPO (connector) |
| Type of Cable | Solar Cable 2.5mm2, 4mm2, 6mm2 and 10mm2 | Length | Customized |
| Degree of Protection | IP2*/IP68 | Certificate | TUV, CE |
| Rated current | 50A | Rated voltage | 1000V / 1500V DC |
| Application | Solar PV system |
Product Description

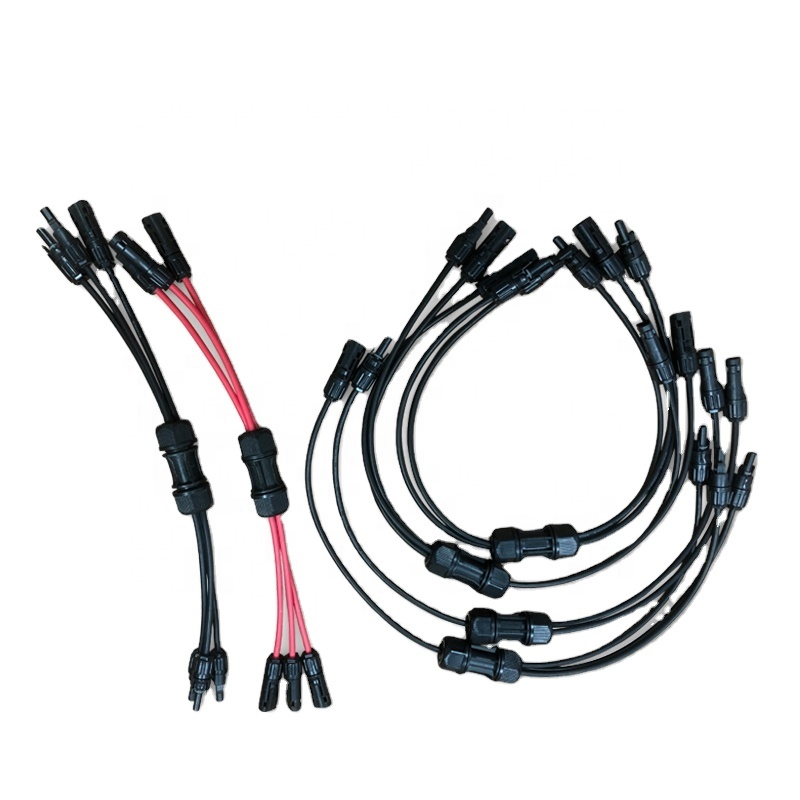

Features of X type Branch PV Cable Assembly:
The PV Cables
- Dual wall insulation, electron beam cross-linked
- Excellent resistance to U.V., water, ozone, fluids, salt and general weathering
- High wear and abrasion resistance
- Halogen free, flame retardant, low toxicity
- Excellent flexibility and stripping performance
- High current carrying capacity
- CE TUV ISO approved
- Simple on-site processing
- Mating safety provided by keyed housings
- Multiple plugging and unplugging cycles
- Accomodates PV cable with different diameters
- High current carrying capacity
- CE TUV ISO approved
