Overview
| Place of Origin | Guangdong, China | Brand Name | Slocable |
| Model Number | PV-YX101A | Product Name | Solar PV Junction Box |
| Protection Level | IP68 | Rated voltage | DC 1000V/1500V |
| Insulation material | PPO | Rated current | 16A/20A/25A |
| Working temperature | -40°C~+85°C | Contact material | <0.5mΩ |
| Size of Ribbons | 4~8mm solar cable | Certificate | TUV, ROHS, CE |
| Suitable Cable Cross Range | 1*4.0mm2(AWG12) | Application Class | Class A |
Product Description
Advantages of Solar PV Junction Box :
- Low forward voltage
- High current capability
- High forward surge capability
- Low power losses,high efficiency
- Guarding for over voltage protection

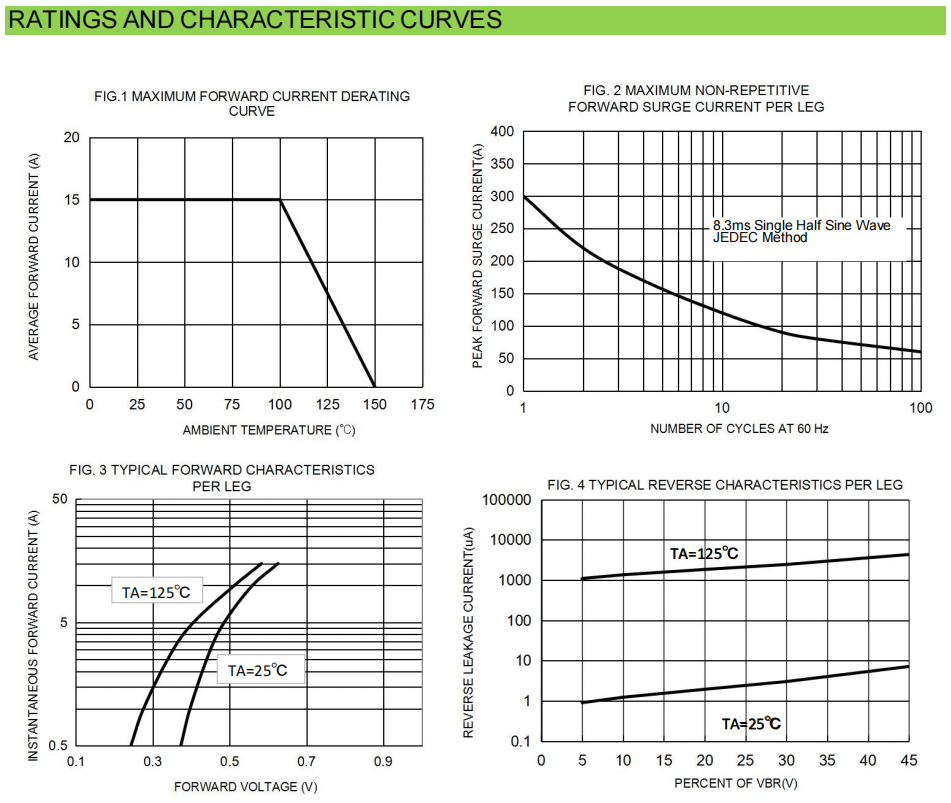

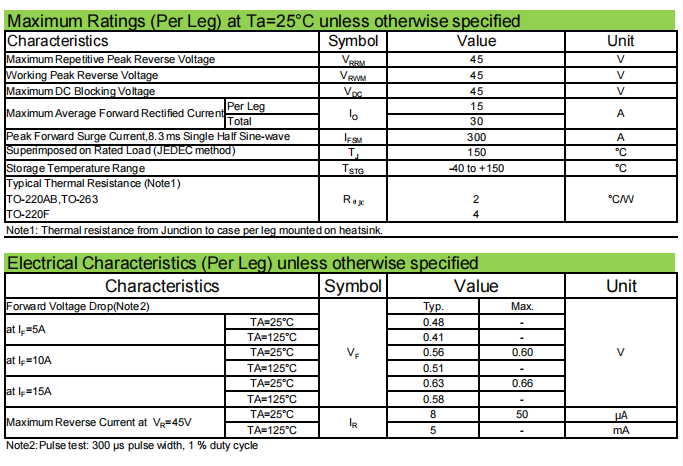

Technical Data
