Overview
| Place of Origin | Guangdong, China | Brand Name | Slocable |
| Model Number | CN40-DC-15 | Item | PV Diode Connector |
| Gender | Male & Female | Application | Solar pv system |
| Rated voltage | DC 1000V/1500V | Rated current | 10A |
| Degree of protection | IP68 | Contact material | Copper, Tin Plated |
| Insulation material | PPE | Certificate | CE, ROHS |
| Working temperature | -40℃~+85℃ |
Product Description
Advantages of PV Diode Connector 1000V/1500V DC :
- Compatible MC4
- Simple on-site processing, safe and quick
- Small and light
Technical Data
| Product name | PV Diode Connector |
| Insulation material | PPE |
| Rated current | MAX.20A (Diode) Max.50A (Solar connector pins) |
| Rated voltage | 1500VDC |
| Test voltage | 8kV(50Hz, 1min) |
| Contact resistance | <0.5mΩ |
| Contact Material | Copper,Tin plated |
| Degree of protection | IP68 |
| Safety class | Ⅱ |
| Flame class | UL94-V0 |
| Insertion force | Max. 50N |
| Withdrawal force | Min. 50N |
| Ambient Temperature Range | -40℃~ +85℃ (IEC) |

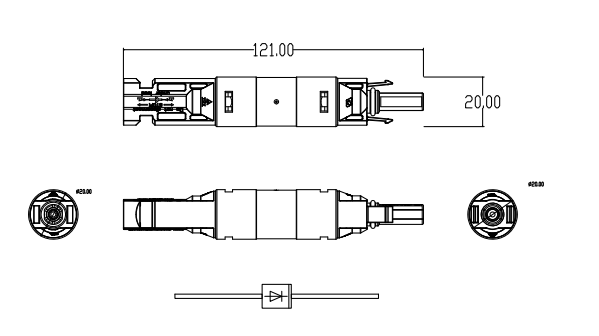

| Pin Dimensions | Φ4mm |

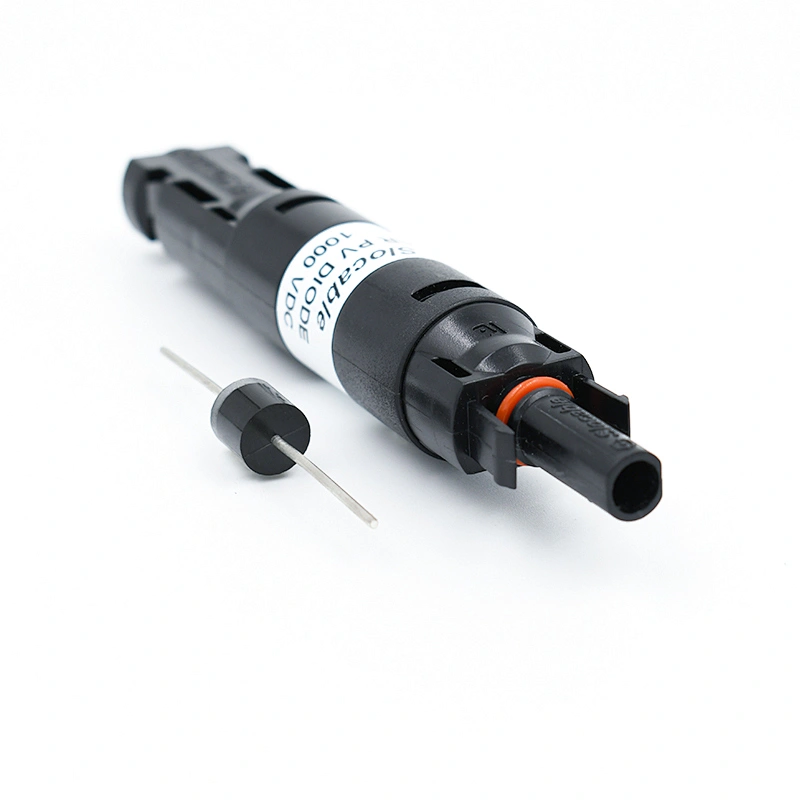

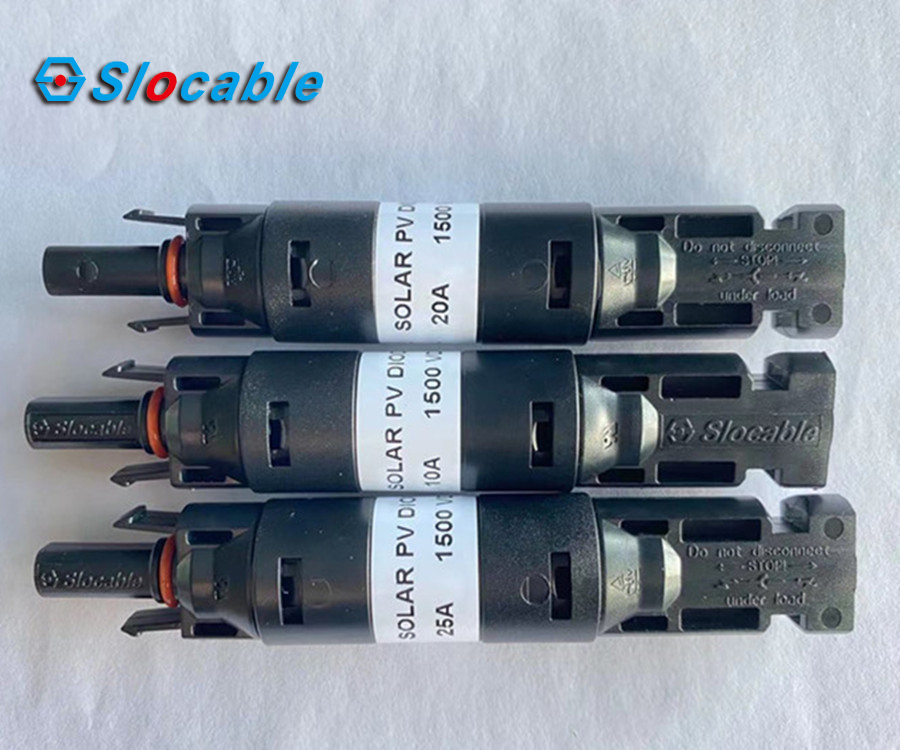

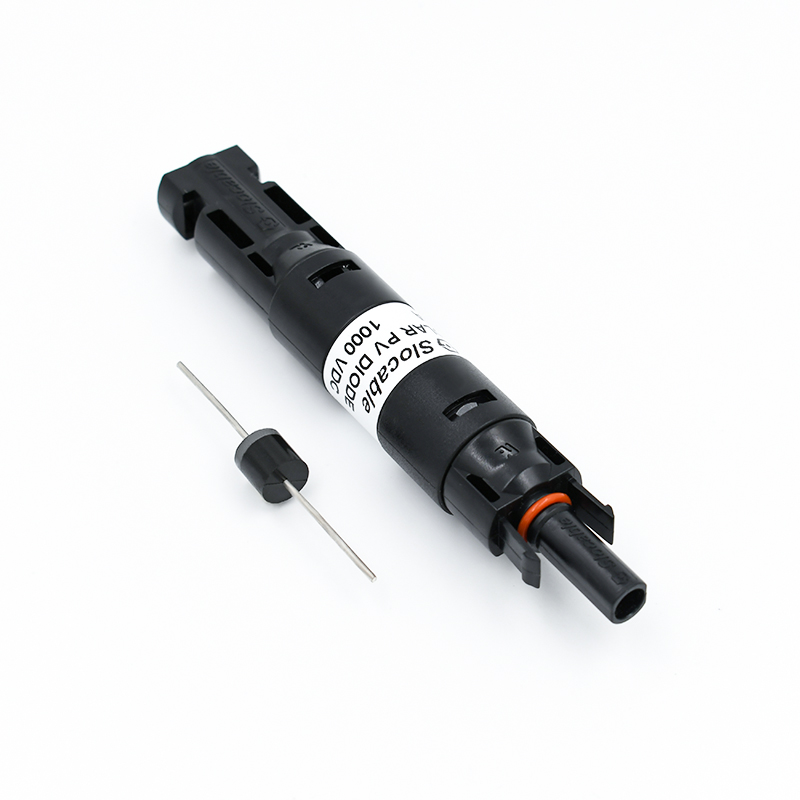

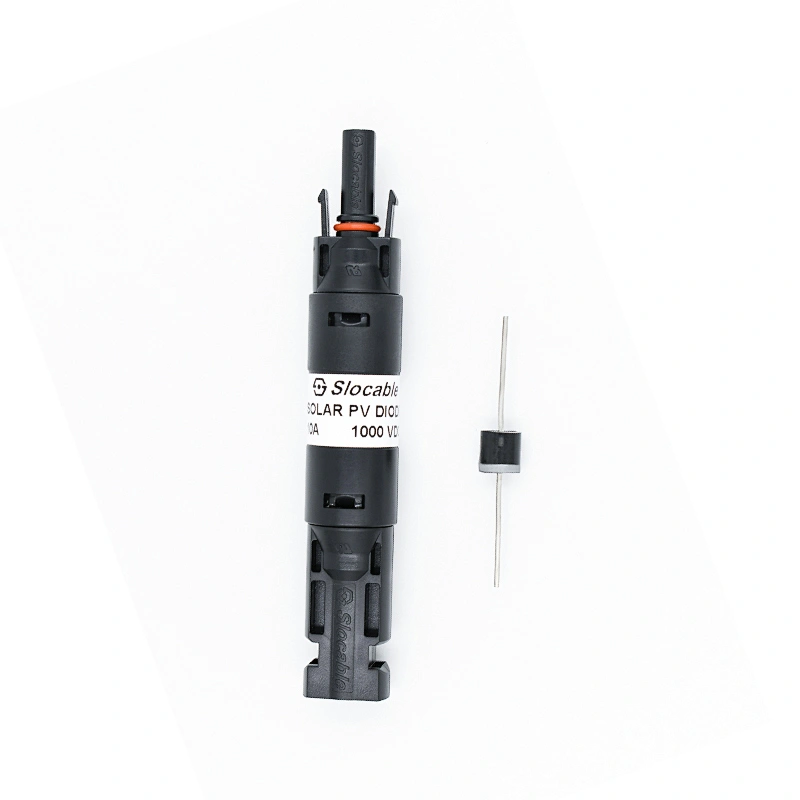

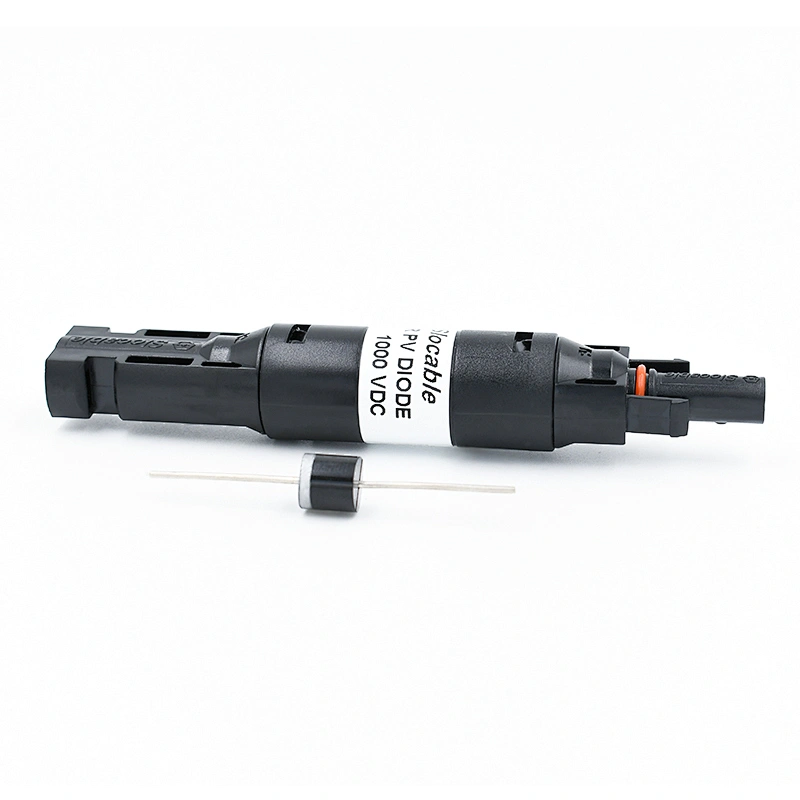

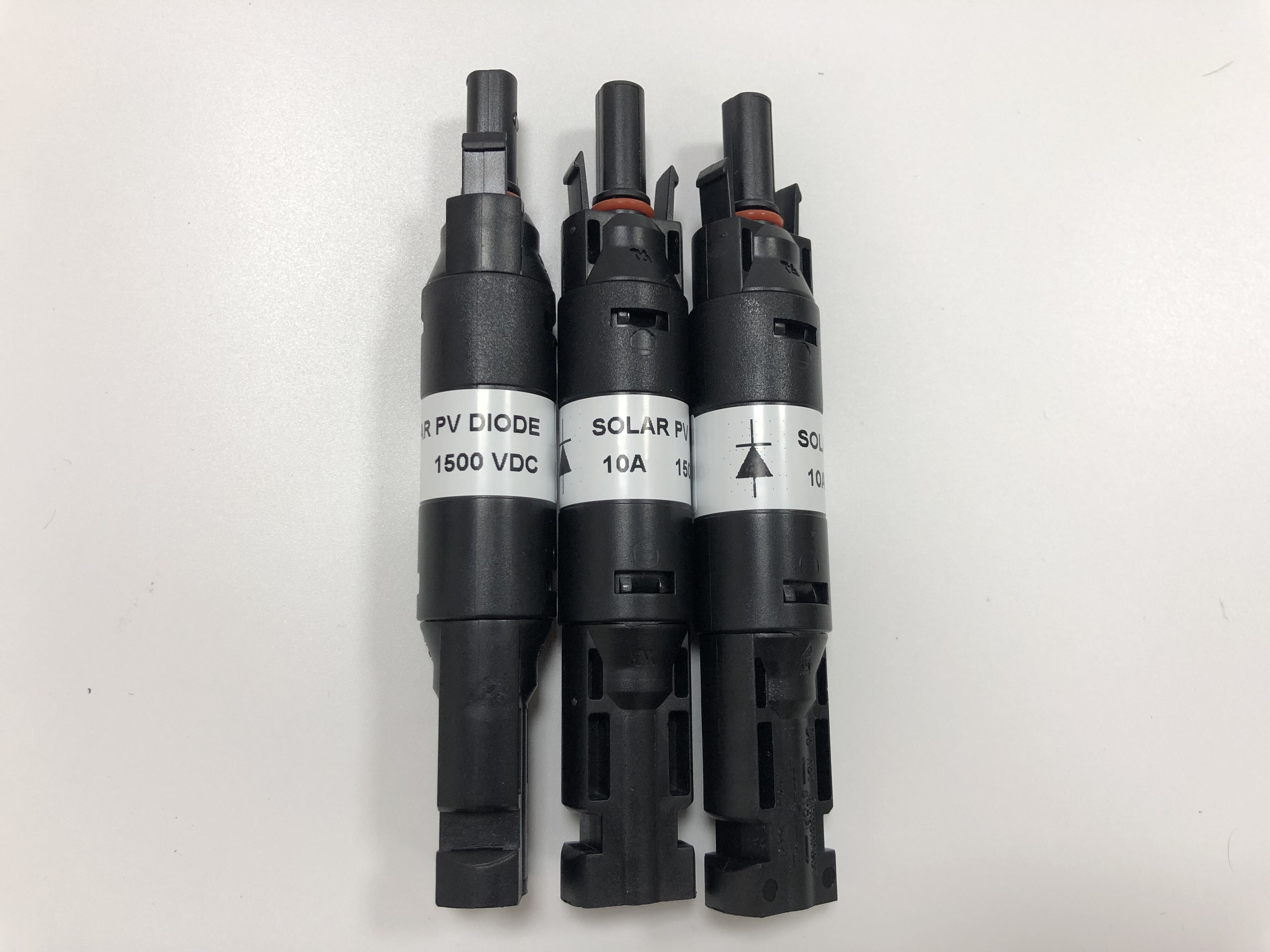

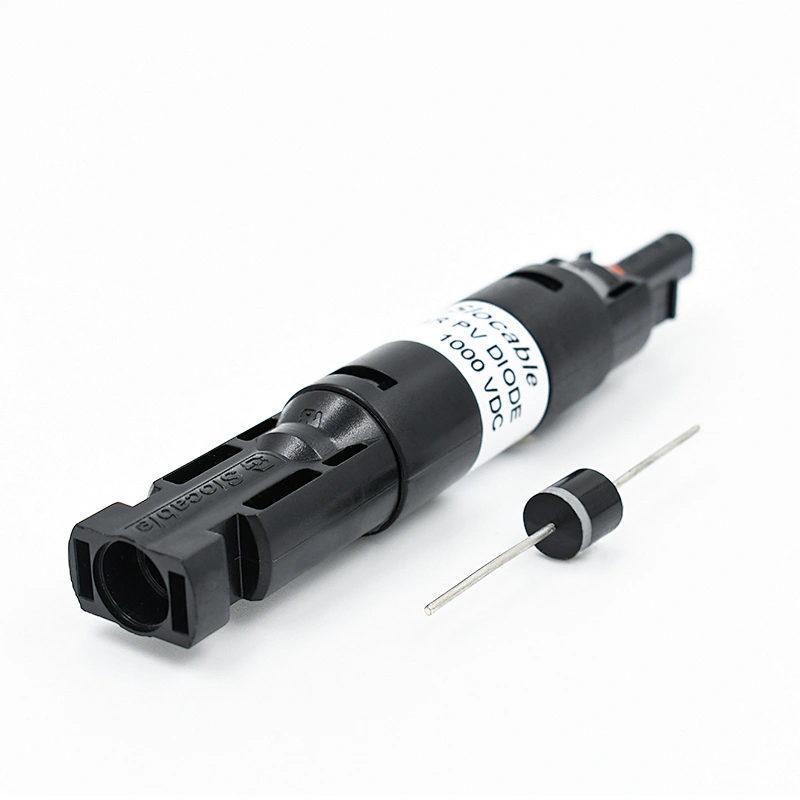

Product Picture
