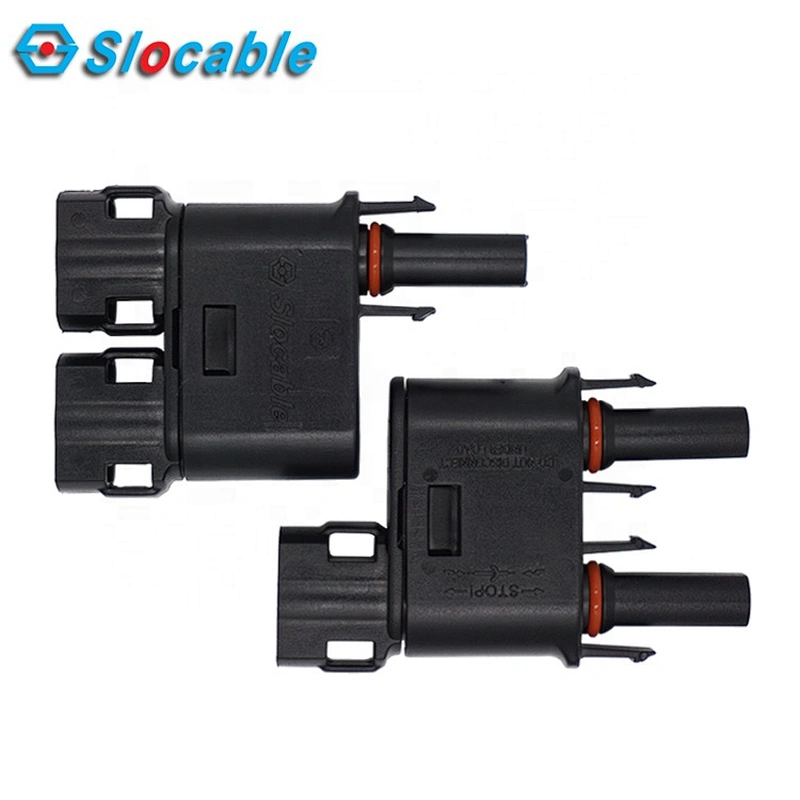

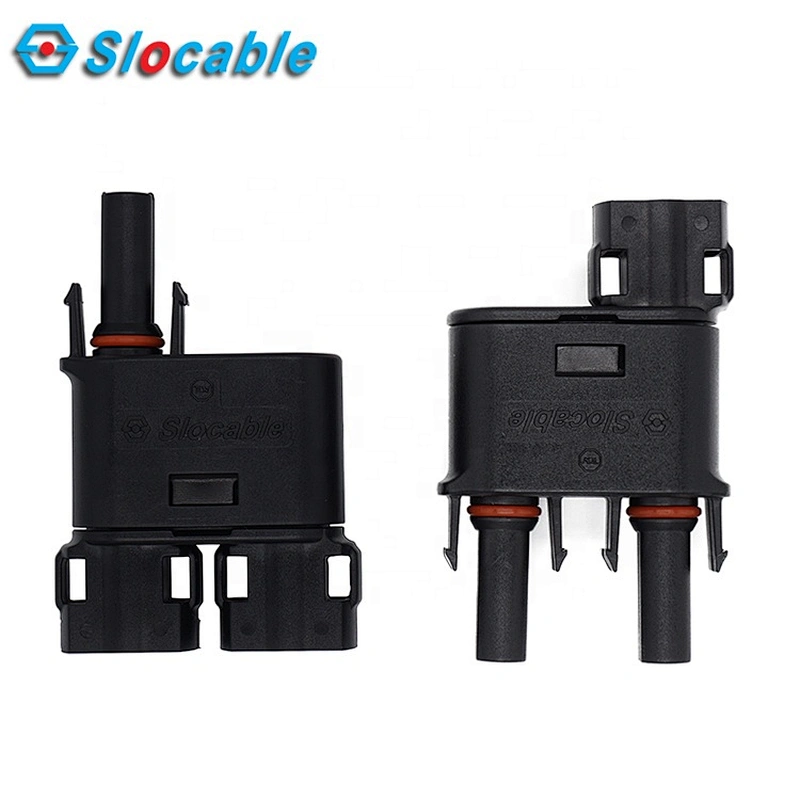

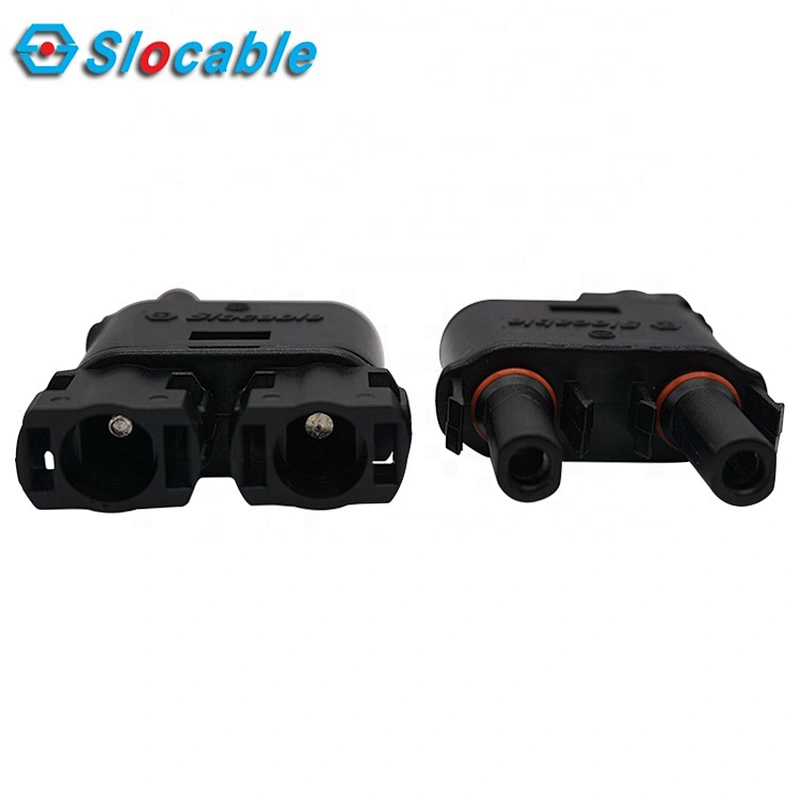

1500V DC PV Branch Connector 2 to 1
1500V DC PV Branch Connector 2 to 1
1500V DC PV Branch Connector 2 to 1
1500V DC PV Branch Connector 2 to 1
1500V DC PV Branch Connector 2 to 1
1500V DC PV Branch Connector 2 to 1
1500V DC PV Branch Connector 2 to 1
1500V DC PV Branch Connector 2 to 1
1500V DC PV Branch Connector 2 to 1

1500V DC PV Branch Connector 2 to 1

Model NO.
BC40 Branch Connector
Delivery
EXW/FOB/CIF/FCA/DAP
Supply Ability
500000 piece / Month
Country of Origin
Guangdong, China
Stock Time
3-9 Days
Quantity:

Overview

Place of OriginGuangdong, ChinaBrand NameSlocable
Model NumberBC40PV Branch ConnectorItem1500V DC PV Branch Connector2 to 1
ApplicationSolar pv systemSafety class ll
Test voltage8kV (50Hz,1 min)Gendermale & female
Rated voltageDC 15000VRated current50A
Degree of protectionIP2* / IP68Temperature range-40 ~ +85℃(IEC)
Insulation materialPPEContact materialCopper, Tin Plated
Overvoltage catagory/ Pllution degreeCATlll / 2Flame classll
CertificateTUV CEContact resistance of plug＜1mΩ




Product Description
PV Branch Connector
Advantages of 1500V DC PV Branch Connector  2 to 1:
  • Simple on-site processing
  • Mating safety provided by keyed housings
  • Mutiple plugging and unplugging cycles
  • Accomodates PV cable with deferent insulation diamaters
  • High Voltage and Current carrying capacity
  • TUV and CE approved
  • Competitive price

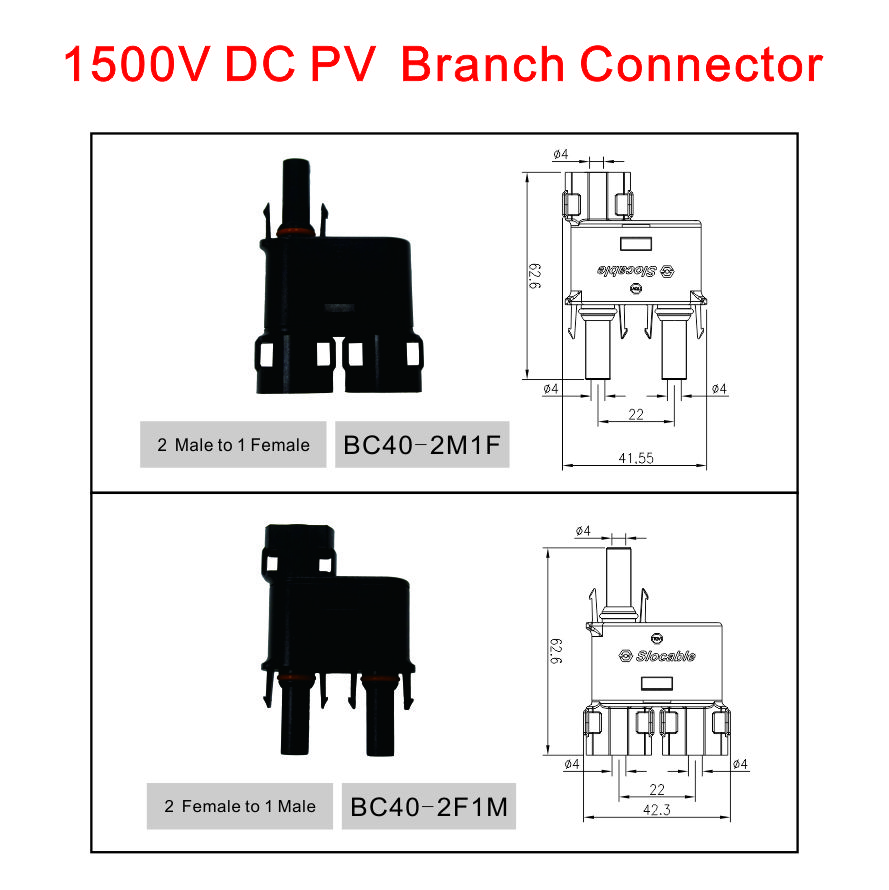

Technical Data

PV Branch Connector



(We also produce 3 to1, 4 to 1, 5 to 1 type PV Branch Connector, you can consult me directly if necessary)


Product Picture

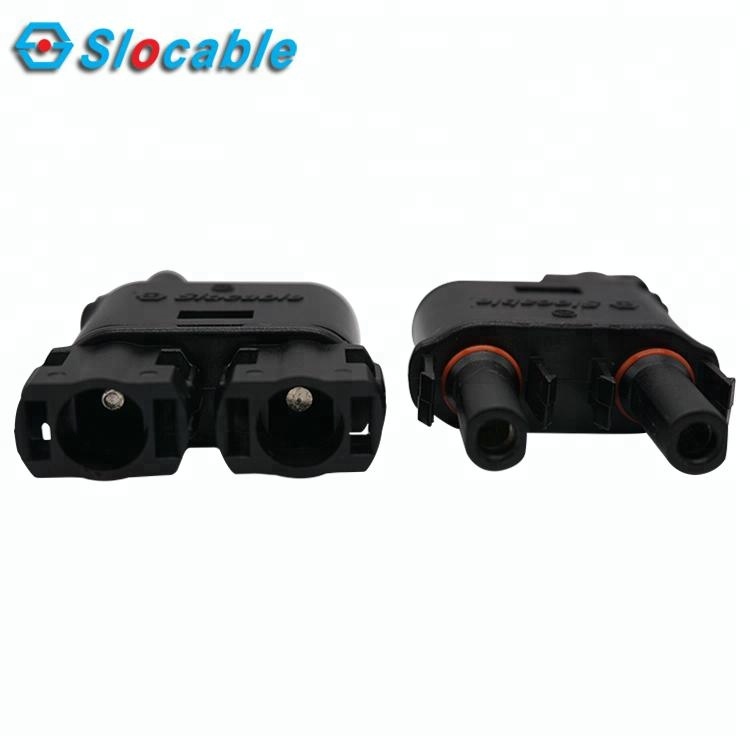

PV Branch Connector

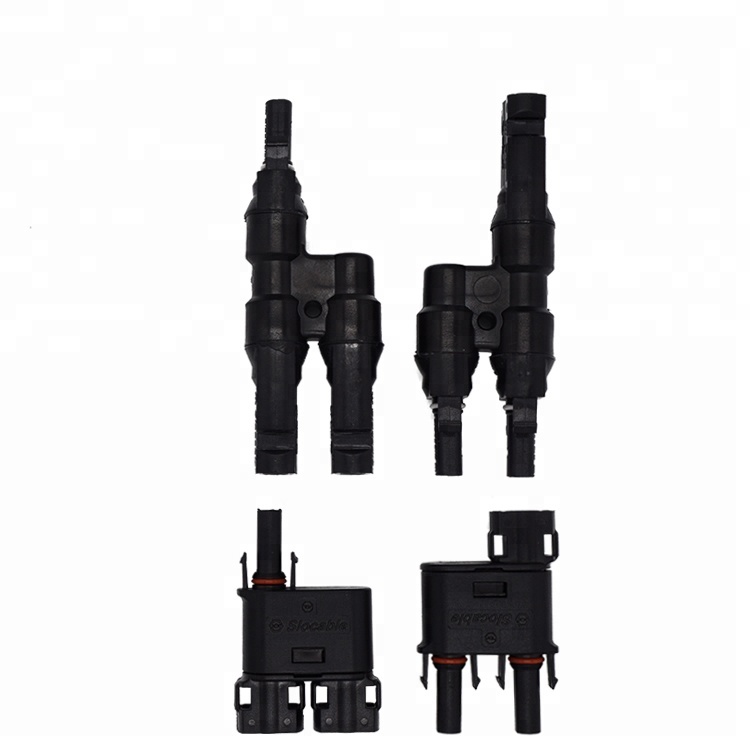

 PV Branch ConnectorPV Branch Connector

Click the following picture to get 1500V DC PV Branch Connector  3 to 1

PV Branch Connector
